Gates® 8GS-8FL90L

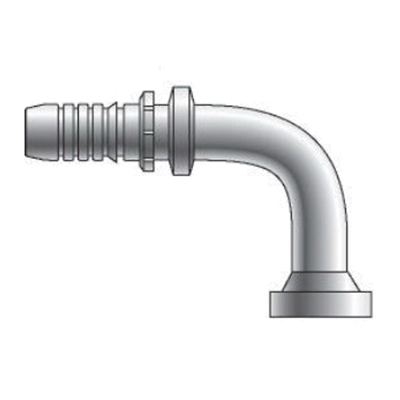

Gates® GlobalSpiral™ 8GS-8FL90L TuffCoat® Steel Code 61 O-Ring Flange Crimp Hose 90 deg Long Drop Elbow, 1/2 in

  • Manufacturer: Gates Corp
  • Brand: Gates®
  • ARGPN: 8GS-8FL90L
  • MPN: 8GS-8FL90L
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Sold As: 1/PK
  • loading
  • Add to cart
  1. pin-int

Gates® GlobalSpiral™ Crimp Hose 90 deg Long Drop Elbow, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: Code 61 Flange, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, 5000 psi, Cut-Off Factor: 1.99 in, Material Construction: Steel, Finish: TuffCoat®, Dimension Standards: ISO Final Draft International Standard 12151-3, 250 deg F

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type      :      Hose~Code 61 Flange
Connection Type 1      :      Hose
Connection Type 2      :      Code 61 Flange
Cut-Off Factor      :      1.99 in
Dimension Standards      :      ISO Final Draft International Standard 12151-3
Finish      :      TuffCoat®
Fitting Type      :      90 deg Elbow
Hose Dash Size      :      08
Material      :      Steel
Material Construction      :      Steel
Nominal Size      :      1/2 in
Pressure Rating      :      5000 psi
Shape      :      90 deg Elbow
Sub Brand      :      GlobalSpiral™
Temperature Rating      :      250 deg F

Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.

  • Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
  • Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
  • Surpasses one million impulse cycles
  • One stem used for all spiral hoses
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
