Gates® 10GS-10FFORX

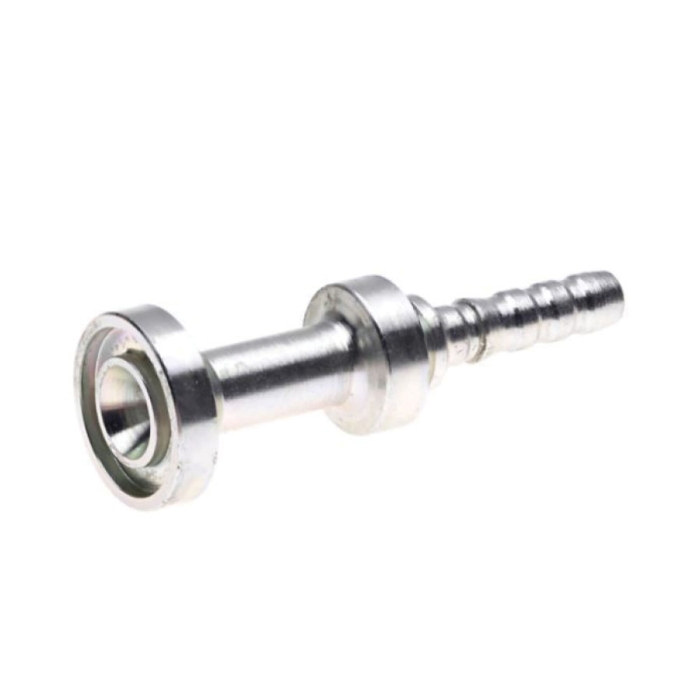

Gates® GlobalSpiral™ 10GS-10FFORX TuffCoat® Steel Female ORFS Swivel Crimp Straight Hose Fitting, 5/8 in

Manufacturer: Gates Corp
Brand: Gates®
ARGPN: 10GS-10FFORX

MPN: 10GS-10FFORX

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Features
Documents

Gates® GlobalSpiral™ Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 1-14, Hex Size: 30 x 30 mm, 6000 psi, Cut-Off Factor: 1.72 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 3.7 in L, Dimension Standards: ISO Draft International Standard 12151-1, SAE J1453, 250 deg F

Connection Size 1	:	5/8 in
Connection Size 2	:	5/8 in
Connection Type	:	Hose~ORFS Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	ORFS Swivel
Cut-Off Factor	:	1.72 in
Dimension Standards	:	ISO Draft International Standard 12151-1, SAE J1453
Dimensions	:	3.7 in L
Finish	:	TuffCoat®
Fitting Type	:	Straight Hose Fitting
Gender 2	:	Female
Hex Size	:	30 x 30 mm
Hose Dash Size	:	10
Material	:	Steel
Material Construction	:	Steel
Nominal Size	:	5/8 in
Pressure Rating	:	6000 psi
Shape	:	Straight
Sub Brand	:	GlobalSpiral™
Temperature Rating	:	250 deg F
Thread Size 2	:	1-14

Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.

Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
Surpasses one million impulse cycles
One stem used for all spiral hoses
