Gates® 20MGS-20FL45S-032

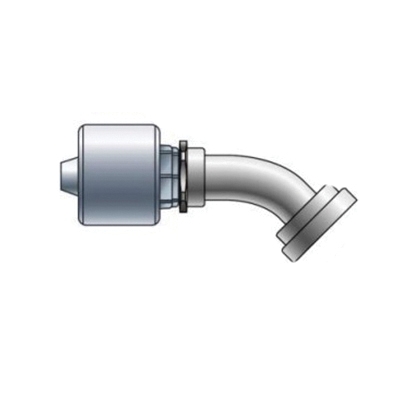

Gates® GlobalSpiral™ 20MGS-20FL45S-032 TuffCoat® Steel Code 61 O-Ring Flange Special 1-Piece Crimp Hose 45 deg Short Drop Elbow, 1-1/4 in x 20 mm

Manufacturer: Gates Corp
Brand: Gates®
ARGPN: 20MGS-20FL45S-032

MPN: 20MGS-20FL45S-032

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Sold As: 1/PK
Add to cart

Description
Specs
Features
Documents

Gates® GlobalSpiral™ Special 1-Piece Crimp Hose 45 deg Short Drop Elbow, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: Code 61 Flange, Connection Size 2: 20 mm, Nominal Size: 20 mm, Cut-Off Factor: 3.89 in, Material Construction: Steel, Finish: TuffCoat®, 250 deg F

Connection Size 1	:	1-1/4 in
Connection Size 2	:	20 mm
Connection Type	:	Hose~Code 61 Flange
Connection Type 1	:	Hose
Connection Type 2	:	Code 61 Flange
Cut-Off Factor	:	3.89 in
Finish	:	TuffCoat®
Fitting Type	:	45 deg Elbow
Hose Dash Size	:	20
Material	:	Steel
Material Construction	:	Steel
Nominal Size	:	20 mm
Shape	:	45 deg Elbow
Sub Brand	:	GlobalSpiral™
Temperature Rating	:	250 deg F

Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5x better corrosion resistance than SAE ASTM B117 specification.

Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
Surpasses one million impulse cycles
One stem used for all spiral hoses
Special -20 coupling to crimp 20EFG4K in MC420 crimper
