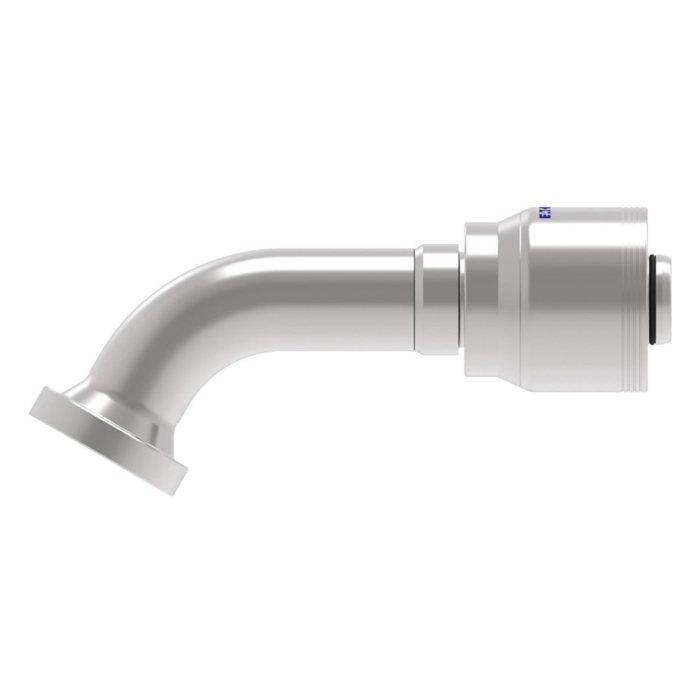

Weatherhead® 4-Spiral Crimp Hose 60 deg Elbow, Series: 4S, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE Code 62 Flange, Connection Size 2: 1 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Series Hoses, Dimensions: 6.16 in L x 2.084 in W x 1.76 in H, Dimension Standards: SAE J1176
Connection Size 1 |
: |
1 in |
Connection Size 2 |
: |
1 in |
Connection Type |
: |
Hose~Code 62 Flange |
Connection Type 1 |
: |
Hose |
Connection Type 2 |
: |
SAE Code 62 Flange |
Dimension Standards |
: |
SAE J1176 |
Dimensions |
: |
6.16 in L x 2.084 in W x 1.76 in H |
Finish |
: |
Dura-Kote |
Fitting Type |
: |
60 deg Elbow |
For Use With |
: |
EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Series Hoses |
Hose Dash Size |
: |
16 |
Material |
: |
Steel |
Material Construction |
: |
Carbon Steel |
Series |
: |
4S |
Shape |
: |
60 deg Elbow |
Eaton's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.
- New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
- New patent pending dura-seal technology to eliminate hose assembly cool down leakage
- Class zero leakage SAE J1176 on approved hose styles
- Eaton's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
-
Catalog
