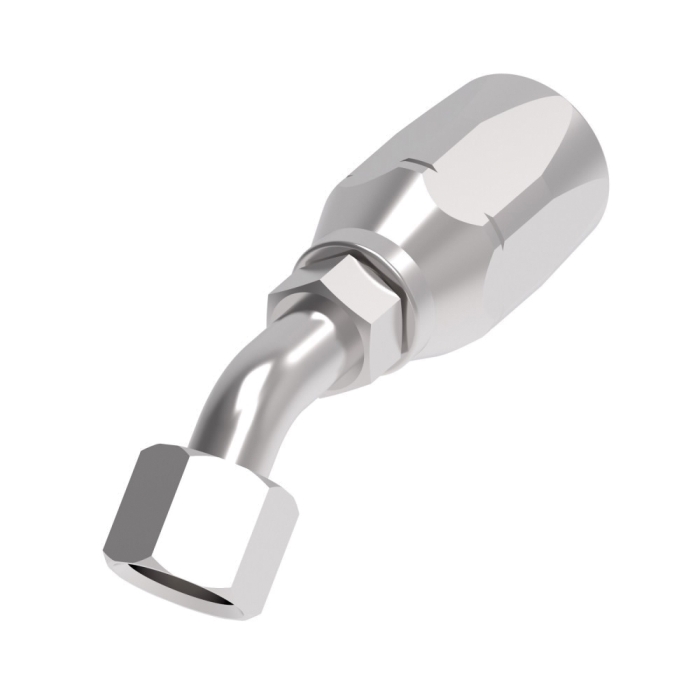

Weatherhead® 425 N Dura-Kote Carbon Steel Female SAE 37 deg JIC Flare Swivel Field Attachable Reusable 45 deg Tube Elbow, 1 in

Weatherhead® 42516N-696

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Weatherhead®
  • ARGPN: 42516N-696
  • MPN: 42516N-696
  • UPC: 725975063569
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Weatherhead® Field Attachable Reusable 45 deg Tube Elbow, Series: 425 N, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE 37 deg JIC Flare Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-3/4 x 1-1/2 in, Cut-Off Factor: 1.1 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H425 Series Hoses, Dimensions: 6.17 in l x 1.75 in W x 2.72 in H, Dimension Standards: SAE 100R2

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 37 deg JIC Flare Swivel
Cut-Off Factor      :      1.1 in
Dimension Standards      :      SAE 100R2
Dimensions      :      6.17 in l x 1.75 in W x 2.72 in H
Finish      :      Dura-Kote
Fitting Type      :      45 deg Elbow
For Use With      :      H425 Series Hoses
Gender 2      :      Female
Hex Size      :      1-3/4 x 1-1/2 in
Hose Dash Size      :      16
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      1 in
Series      :      425 N
Shape      :      45 deg Elbow
Thread Size 2      :      1-5/16-12
  • Good selection of hose ends
  • Non-mandrel assembly

Warranty: 5 Years Limited

Applications: High-pressure hydraulic applications such as construction, farm implement and industrial equipment

Prop Warning AISI/SAE 12L14 Specified
