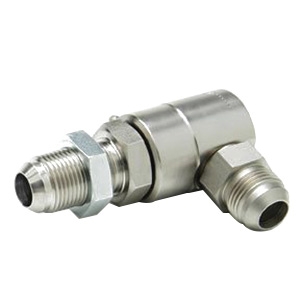

Super Swivels® 9 SS 16 MJB 16 X MJ 16 Carbon Steel 90 deg Bulkhead Swivel, 1 in Male 37 deg JIC

Super Swivels® 9 SS 16 MJB 16 X MJ 16

  • Manufacturers: Super Swivels
  • Brand Name: Super Swivels®
  • ARGPN: 9SS16MJB16XMJ16
  • MPN: 9 SS 16 MJB 16 X MJ 16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Super Swivels® 90 deg Bulkhead Swivel, Connection Type 1: 37 deg JIC, Gender 1: Male, Connection Size 1: 1 in, Thread Size 1: 1-5/16-12, Connection Type 2: 37 deg JIC, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-5/8 in, 3500 psig, Material Construction: Carbon Steel, Dimensions: 5.11 in L

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      37 deg JIC
Connection Type 2      :      37 deg JIC
Dimensions      :      5.11 in L
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      1-5/8 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      3500 psig
Shape      :      Swivel Fitting
Thread Size 1      :      1-5/16-12
Thread Size 2      :      1-5/16-12

90 deg swivels rotating joints provide free rotation on one axis with a right-angle change of path. They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping. 90 deg Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation. Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks. Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics. 90 deg Swivels sizes range from 1/8 in through 2 in body thread with numerous fittings and seal configurations.
