Stucchi 800201004

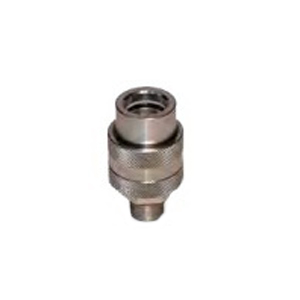

Stucchi IV-HP Series 800201004 Coupler, 3/8 in Female x 3/8 in NPT, Steel
- Manufacturer: Stucchi USA
- Brand: Stucchi
- ARGPN: 800201004
- MPN: 800201004
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Stucchi USA factory-direct delivery:
-
IV-HP is a screw to connect coupling series with ball valves. This series is intended for high pressure hydraulic applications up to 700 bar or 10152 psi. The couplings are manufactured with high resistance carbon steel with zinc-plated treatment. They are interchangeable with similar couplings existing on the market and used mainly for hydraulic jacks and cylinders.
Stucchi Coupler, IV-HP Series, Coupler Fitting, 3/8 in Connection Size 1, Female Connection Type 1, 3/8 in Connection Size 2, NPT Connection Type 2, Female|NPT Connection, Steel, Carbon Steel Material Construction, Zinc-Plated, 0.94 in Hex, 2.84 in L, 700 psi Maximum Operating Pressure, -20 to 100 deg C Operating, 1.38 in OD, NBR Seal Material
| Additional Information | : | 1.38 in OD, NBR Seal Material |
| Connection Size 1 | : | 3/8 in |
| Connection Size 2 | : | 3/8 in |
| Connection Type | : | Female|NPT |
| Connection Type 1 | : | Female |
| Connection Type 2 | : | NPT |
| Dimensions | : | 2.84 in L |
| Finish | : | Zinc-Plated |
| Fitting Type | : | Coupler |
| Hex Size | : | 0.94 in |
| Material | : | Steel |
| Material Construction | : | Carbon Steel |
| Maximum Operating Pressure | : | 700 psi |
| Operating Temperature | : | -20 to 100 deg C |
| Series | : | IV-HP Series |
- Interchanges with ENERPAC®/Hydraulic Jack, Parker® 3000
- Threaded sleeve for connection-disconnection
- High resistance carbon steel for higher burst pressure
- Screw to connect for connection under residual pressure
- Ball valves for tight seal
- Compact slim design
- Simple to use
