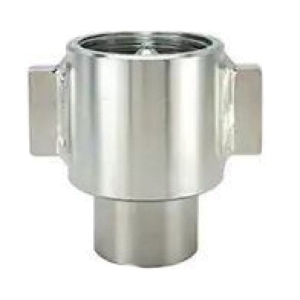

Snap-tite 75 Series Zinc Trivalent-Plated Steel High-Pressure Coupling with Wing Nut Sleeve, 1 in Quick Connect x 1 in FNPSF

Snap-tite 75C16-16F

  • Manufacturers: Parker Hannifin
  • Brand Name: Snap-tite
  • ARGPN: 75C16-16F
  • MPN: 75C16-16F
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Snap-tite High-Pressure Coupling with Wing Nut Sleeve, Series: 75, Connection Type 1: Quick Connect, Connection Size 1: 1 in, Connection Type 2: NPSF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1.69 in, 5000 psi Maximum Working, 20000 psi Minimum Burst, Material Construction: Steel, Finish: Zinc Trivalent-Plated, Dimensions: 4.25 in OD x 3.45 in L, -40 to 250 deg F

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Connect
Connection Type 2      :      NPSF
Dimensions      :      4.25 in OD x 3.45 in L
Finish      :      Zinc Trivalent-Plated
Gender 2      :      Female
Hex Size      :      1.69 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      5000 psi Maximum Working, 20000 psi Minimum Burst
Series      :      75
Shape      :      Coupling
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1-11-1/2

The rugged 75 Series is designed and constructed for high-pressure hydraulic service. Although these couplings are used in a broad variety of heavy-duty applications, a primary usage is in oil fields and offshore drilling.

  • Connect fluid lines under residual pressure
  • Nitrile is standard seal material, other options available
  • Thread to connect wing nut makes a secure connection in rugged conditions

Applications: For high pressure hydraulic systems, oil fields and offshore drilling rigs, cranes, power tongs, horizontal boring and dewatering
