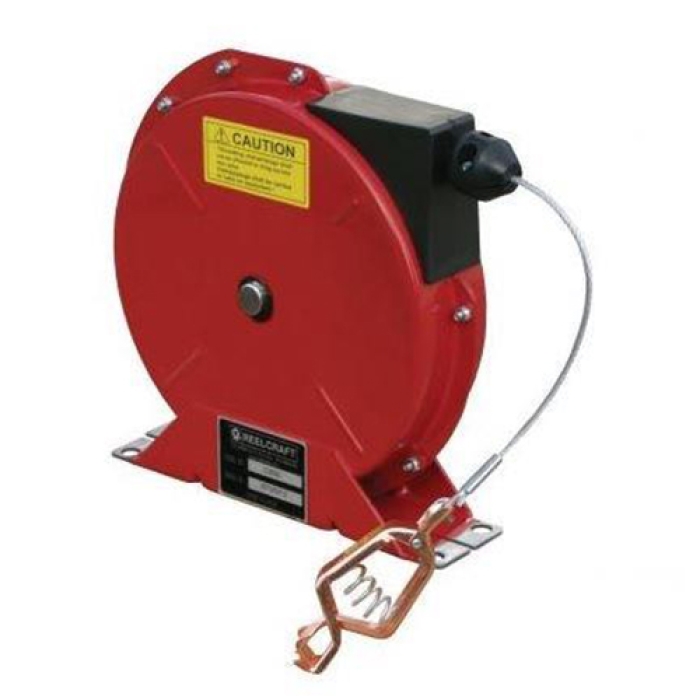

Reelcraft® Heavy-Duty Grounding Reel, Series: G3000, 50 ft Length Hose, Winding Method: Spring Retractable, 100 A, Material Construction: Carbon Steel, Dimensions: 8-5/8 in L x 3-3/8 in W x 8-7/8 in H
| Amperage Rating |
: |
100 A |
| Dimensions |
: |
8-5/8 in L x 3-3/8 in W x 8-7/8 in H |
| Hose Length |
: |
50 ft |
| Material |
: |
Steel |
| Material Construction |
: |
Carbon Steel |
| Product Type |
: |
Grounding Reel |
| Series |
: |
G3000 |
| Winding Method |
: |
Spring Retractable |
Reelcraft® static discharge reels are used to ground equipment operating in hazardous atmospheres. When properly clamped to the ground, the static discharge reel dissipates static electrical buildup, reducing the chances of sparking and the potential for explosion. 3/32 in OD steel aircraft cable. DC resistance is approximately 1 ohm/50 ft of steel cable.
- Made from industrial-grade carbon steel for strength
- Compact design reels require little mounting space for applications where space is a critical requirement
- Corrosion resistance steel components are powder-coated for superior corrosion resistance
- Easily adjust spring tension, loosening two screws allows user to add or remove spring tension
- Single 7 x 7 stranded steel
Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_G_3050_CAT_NEW2021.pdf
-
Installation Instructions
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_G_3050_II.pdf
-
Technical Drawing/Parts Diagram
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_G_3050_TD.pdf
