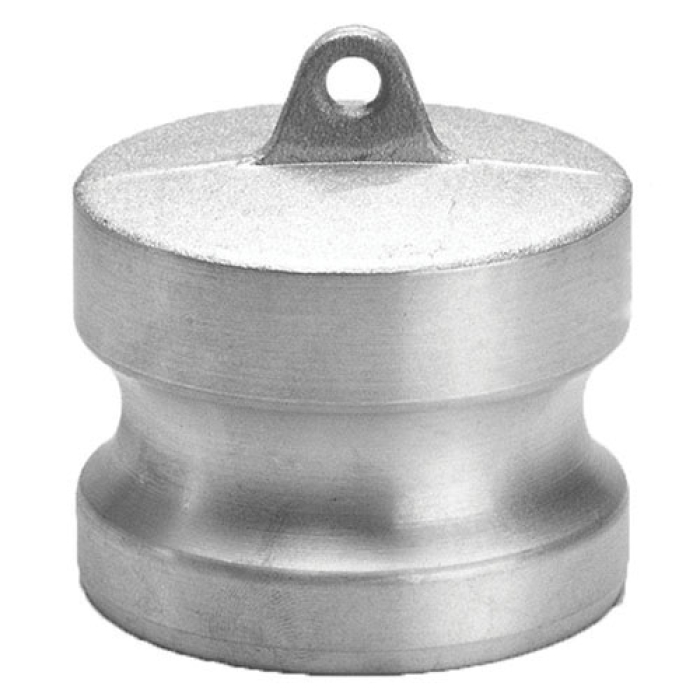

PT Coupling CF1401230 Import Stainless Steel Cam and Groove CF Adapter Dust Plug, 3 in Type W

PT Coupling CF1401230

  • Manufacturers: PT Coupling Company
  • Brand Name: PT Coupling
  • ARGPN: CF300W SS
  • MPN: CF1401230
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

PT Coupling Cam and Groove CF Adapter Dust Plug, Connection Type 1: Type W, Connection Size 1: 3 in, 150 psi, Material Construction: Stainless Steel, Dimensions: 3.03 in L, -150 deg F

Connection Size 1      :      3 in
Connection Type 1      :      Type W
Dimensions      :      3.03 in L
Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Pressure Rating      :      150 psi
Shape      :      Dust Plug
Temperature Rating      :      -150 deg F
  • Imported
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/PT Coupling_CF1401230_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/PT Coupling_CF1000310_TD.pdf
