Pressure Components RKH-34-SAE-4425 PCI-RKH-34-SAE

Pressure Components RKH-34-SAE-4425

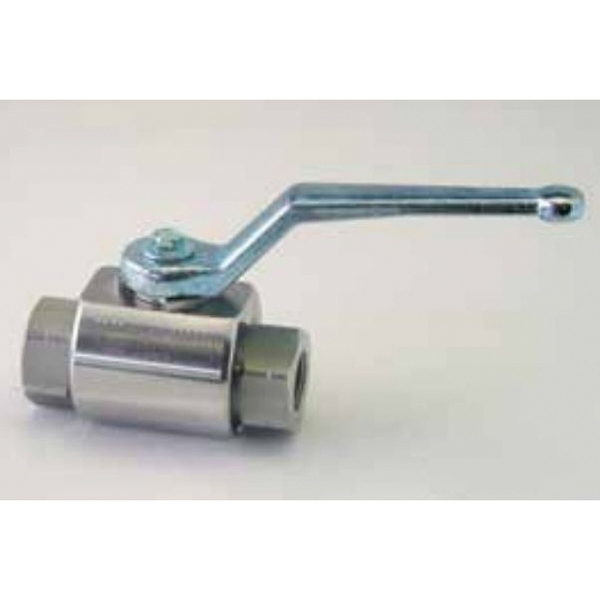

Pressure Components RKH-34-SAE-4425 Ball Valve, 3/4 in, ORB, 316 Stainless Steel, 6000 psi

  • Manufacturer: Pressure Components
  • Brand: Pressure Components
  • ARGPN: PCI-RKH-34-SAE
  • MPN: RKH-34-SAE-4425
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Pressure Components factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Pressure Components Ball Valve, RKH Series, 3/4 in Nominal, ORB Connection, Full Port, 6000 psi, 3.66 in Inlet to Outlet Length, 1.91 in Top to Inlet Center, 316 Stainless Steel Body, Polyacetal Seat, 316 Stainless Steel Stem, FKM/FPM Seal, 316 Stainless Steel Ball, FKM/FOM Softgoods, -20 to 215 deg F, 2.56 in W

Ball Material      :      316 Stainless Steel
Body Material      :      316 Stainless Steel
Connection Type      :      ORB
Dimensions      :      2.56 in W
Inlet to Outlet Length      :      3.66 in
Nominal Size      :      3/4 in
Port Type      :      Full
Pressure Rating      :      6000 psi
Seal Material      :      FKM/FPM
Seat Material      :      Polyacetal
Series      :      RKH Series
Softgoods Material      :      FKM/FOM
Stem Material      :      316 Stainless Steel
Temperature Rating      :      -20 to 215 deg F
Top to Inlet Center      :      1.91 in
