OPW® HBV-4111

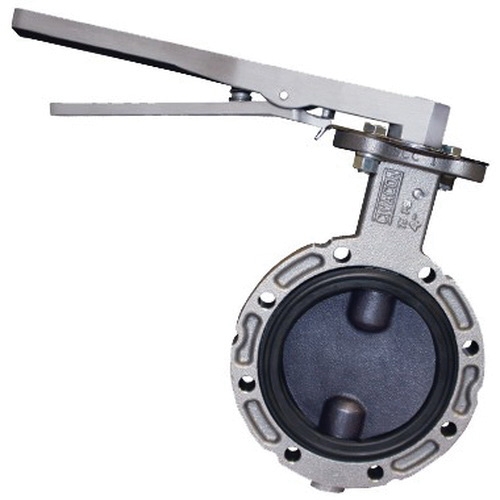

OPW® Civacon HBV Aluminum Hybrid Butterfly Valve, 4 in TTMA Flange, Buna-N Seat

  • Manufacturer: Dover Corporation
  • Brand: OPW®
  • ARGPN: HBV-4111
  • MPN: HBV-4111
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
  1. pin-int

OPW® Civacon Hybrid Butterfly Valve, Series: HBV, Nominal Size: 4 in, Connection Type: TTMA Flange, Actuator Type: Handle, Material Construction: Aluminum, Stainless Steel Disc, Buna-N Seat Trim, -40 to 300 deg F

Actuator Type      :      Handle
Connection Type      :      TTMA Flange
Material      :      Aluminum
Material Construction      :      Aluminum
Nominal Size      :      4 in
Product Type      :      Butterfly Valve
Series      :      HBV
Sub Brand      :      Civacon
Temperature Rating      :      -40 to 300 deg F
Trim Material      :      Stainless Steel Disc, Buna-N Seat

Civacon's aluminum body tama hybrid butterfly valves are the ideal solution for all of your wet or dry applications! easily handles harsh, abrasive crude oil, and refined fuel products as well as any other compatible liquid, powder or abrasive service. This valve combines the durability of a traditional resilient seated butterfly valve, while incorporating the sleek, slim-line, compact body style of a common wet/dry valve. This hybrid valve is designed with the industry standard tama bolt pattern which can seamlessly replace any competitor's brand wet/ dry valve with no piping or configuration changes. with its light weight, compact profile and the longevity of a durable, resilient seat, This valve is a valuable solution for all common transportation industry materials, wet or dry. It is available with a black nitrile or a black FKM seat, stainless steel or ductile iron disc, and an optional 10-position, aluminum metering (throttle) style handle.

  • Lightweight compact aluminum body
  • 1-1/8 in Thick body profile can easily replace competitors wet/dry valves
  • 10-position aluminum metering (throttle) style handle
  • Replaceable seat
  • Aluminum handle
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/CIVACON_HBV-3453_SS.pdf
