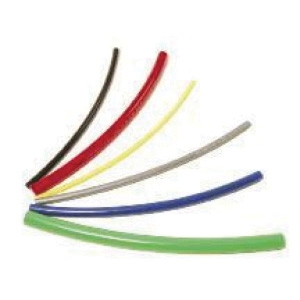

Nycoil 60231 Black Nylon Fractional and Metric Tubing, 1 ftL, 333 psi at 68 deg F, 233 psi at 125 deg F
Nycoil Fractional and Metric Tubing, 5/32 in OD, 0.106 in ID, 1 ftLength, Material Construction: Nylon, Black, 333 psi at 68 deg F, 233 psi at 125 deg F, 0.025 in Thick Wall, 5/8 in Bend Radius, Resistance Properties: Chemical, -40 to 200 deg F
Bend Radius | : | 5/8 in |
Color | : | Black |
Inside Diameter | : | 0.106 in |
Length | : | 1000 ft |
Material | : | Nylon |
Material Construction | : | Nylon |
Outside Diameter | : | 5/32 in |
Pressure Rating | : | 333 psi at 68 deg F, 233 psi at 125 deg F |
Product Type | : | Tubing |
Resistance Properties | : | Chemical |
Temperature Rating | : | -40 to 200 deg F |
Wall Thickness | : | 0.025 in |
Nylon tubing is a popular choice for low-pressure pneumatic applications because of its combination of flexibility and toughness. Nycoil uses a heat and light stabilized, very flexible compound that yields a quality tube. Nylon is the most recommended tubing material for all types of pneumatic circuits. A circuit designer could never get into trouble using nylon tubing for pneumatic circuits. Due to its physical properties, nylon is the number one choice for reliable connections with all types of fittings. Nylon retains its performance integrity in elevated temperatures and generally, because of its higher pressure and temperature characteristics, nylon will have a greater flow passage than composite tubing made from other material with the same outside diameter. These factors should never be overlooked when designing pneumatic circuits.
Applications: Low-pressure pneumatic, pneumatic circuits, injection lube systems and hydro-pneumatic circuit
