MIDLAND INDUSTRIES 685321 PCC68-2.5-1

MIDLAND INDUSTRIES 685321

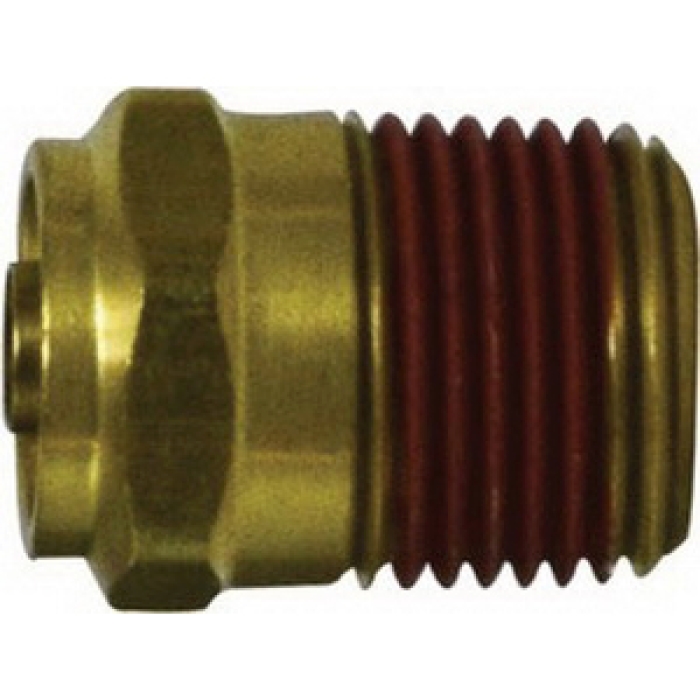

MIDLAND INDUSTRIES 685321 Adapter, 5/32 in Push-In x 1/16 in MNPTF, Brass

  • Manufacturer: Midland Industries
  • Brand: MIDLAND INDUSTRIES
  • ARGPN: PCC68-2.5-1
  • MPN: 685321
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Midland Industries factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

MIDLAND INDUSTRIES Adapter, Adapter Fitting, 5/32 in Connection Size 1, Connection Type 1: Push-In, 1/16 in Connection Size 2, Connection Type 2: MNPTF, Push-Fit|MNPT Connection, Brass, Material Construction: Brass, 1/16-27 Thread, 150 psi, -40 to 200 deg F, Additional Information: 0.02 lb Weight

Additional Information      :      0.02 lb Weight
Connection Size 1      :      5/32 in
Connection Size 2      :      1/16 in
Connection Type      :      Push-Fit|MNPT
Connection Type 1      :      Push-In
Connection Type 2      :      MNPTF
Dimension Standards      :      SAE J1131
Fitting Type      :      Adapter
Gender 2      :      Male
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      150 psi
Shape      :      Connector
Temperature Rating      :      -40 to 200 deg F
Thread Size      :      1/16-27

D.O.T. fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon®-based pipe sealant to provide for easy assembly and leak proof seal.

  • Fast assembly, no tools required
  • Simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings
  • No loose parts to handle
  • Fast disconnect, hold the collet collar with two fingers and pull out tube, no tools required
  • Reusable, can be connected and disconnected several times
  • Reliable sealing, using recommended tubing, full sealing is guaranteed
  • Buna-N O-ring standard
  • Pre-applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
  • Full flow design, provides more flow area
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/MIDLANDINDUSTRIES_025690608ALK_Catalog.pdf
  • Full Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/MIDLANDINDUSTRIES_685321_Full_Engineering_Drawing.pdf
