McKissick® 102025

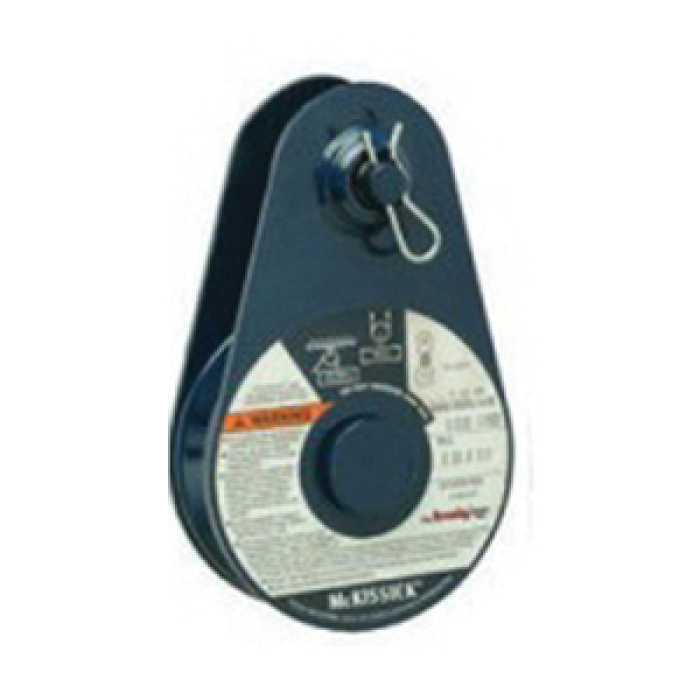

McKissick® 404 Light Champion Single Sheave Snatch Block with Tail Board, 4 ton

  • Manufacturer: Crosby Group
  • Brand: McKissick®
  • ARGPN: 102025
  • MPN: 102025
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
  1. pin-int

McKissick® Light Champion Single Sheave Snatch Block with Tail Board, Series: 404, Load Capacity: 4 ton, 4-1/2 in Sheave, 3/8 - 1/2 in Rope, Dimensions: 7-3/4 in L x 4-1/4 in W

Dimensions      :      7-3/4 in L x 4-1/4 in W
Load Capacity      :      4 ton
Product Type      :      Snatch Block
Rope Size      :      3/8 - 1/2 in
Series      :      404
Sheave Size      :      4-1/2 in
  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended
  • Can be furnished with bronze bushings or roller bearings
  • Center pin equipped with pressure lube fittings
  • Meets or exceeds all requirements of ASME B30.26 including identification ductility, design factor, proof load and temperature requirements fatigue life and material traceability
  • All alloy snatch blocks feature a significant reduction in weight compared to snatch blocks made of non-alloy materials
  • Crosby® engineered solutions group is ready to discuss your requirements and help select or develop the ideal block for your application
  • Fatigue-rated
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/McKissick_102025_CAT.pdf
