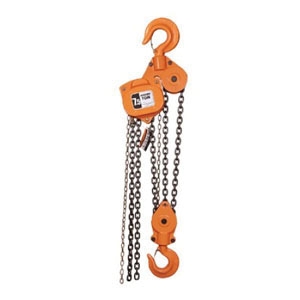

Magna® CH75010 Rugged Steel Hand Chain Hoist, 7.5 ton, 10 ft H Lift

Magna® CH75010

  • Manufacturers: Magna Lifting Products
  • Brand Name: Magna®
  • ARGPN: CH75010
  • MPN: CH75010
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Magna® Hand Chain Hoist, Load Capacity: 7.5 ton, 10 ft Height Lifting, 5 x 23.4 mm Chain, Hook Opening: 1.8 in, Pull to Lift Full Load: 90 lb, Material Construction: Rugged Steel, Dimensions: 27.6 in L x 7.1 in W

Chain Size      :      5 x 23.4 mm
Dimensions      :      27.6 in L x 7.1 in W
Hook Opening      :      1.8 in
Lifting Height      :      10 ft
Load Capacity      :      7.5 ton
Material      :      Steel
Material Construction      :      Rugged Steel
Product Type      :      Hand Chain Hoist
Pull to Lift Full Load      :      90 lb
  • Load tested to 150% of rated capacity
  • Completely repairable with easy access design (1/4 ton is not repairable)
  • Low temperature grease functions at -45 deg C

Applications: For many construction and industrial applications

Prop Warning ANSI Specified | ASME

  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Magna_CH75010_SS.pdf
  • pdfOwner's Manual https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Magna_CH75010_OM.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Magna_CH75010_TD.pdf
  • pdfWarranty PDF https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Magna_CH75010_W.pdf
