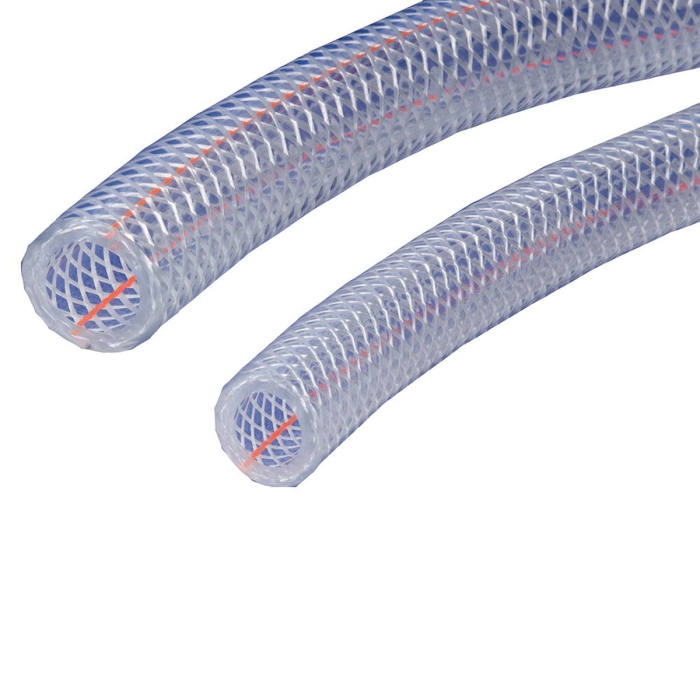

Kuriyama Kuri Tec® CLEARBRAID® K3150 Crystal Clear PVC Standard Wall Food and Beverage Hose, 2 in, 1 ft L, 75 psi

Kuriyama K3150-32X50

  • Manufacturers: Kuriyama Of America
  • Brand Name: Kuriyama
  • ARGPN: K3150-32
  • MPN: K3150-32X50
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Kuriyama Kuri Tec® Standard Wall Food and Beverage Hose, Series: CLEARBRAID® K3150, Nominal Size: 2 in, 2.49 in OD, 2 in ID, 1 ft Length, 75 psi, Material Construction: PVC, Construction: Spiraled Polyester Yarn and Longitudinal Orange Tracer Yarns, Crystal Clear, Resistance Properties: Chemical, 25 deg F Low, 150 deg F High

Color      :      Crystal Clear
Construction      :      Spiraled Polyester Yarn and Longitudinal Orange Tracer Yarns
Inside Diameter      :      2 in
Length      :      50 ft
Material      :      PVC
Material Construction      :      PVC
Nominal Size      :      2 in
Outside Diameter      :      2.49 in
Pressure Rating      :      75 psi
Product Type      :      Food and Beverage Hose
Resistance Properties      :      Chemical
Series      :      CLEARBRAID® K3150
Temperature High      :      150 deg F
Temperature Low      :      25 deg F

A lightweight standard wall crystal clear phthalate-free yarn reinforced hose suitable for a wide variety of food and beverage applications.

  • Crystal clear phthalate-free PVC compound construction
  • Reinforced with spiraled polyester yarn and longitudinal orange tracer yarns for identification
  • Constructed with phthalate-free compounds
  • Crystal clear allows visual confirmation of product flow
  • Longitudinally-reinforced to reduce elongation under pressure
  • Lightweight, self-extinguishing, non-marking, silicone-free and non-conductive
  • 1-piece length
  • Compound hardness 73 +/-3 shore A

Applications: Air and water lines, air breathing lines, deionized water, food and beverage dispensing, liquid food products, packaging machines, potable water transfer, powdered food products and pneumatic lines

Prop Warning 3A Approved|FDA Approved|NSF Certified|RoHS Compliant|UL Listed|USDA Compliant|USP Certified
