Ideal Clamp 47016

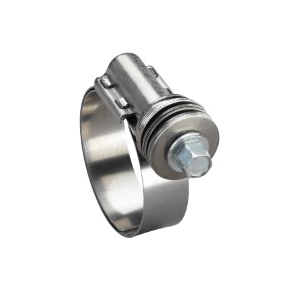

Ideal Clamp Flex-Gear® 47016 Constant Tension Clamp, #16 Nominal, 13/16 in Minimum Clamp Diameter, 301 Stainless Steel
- Manufacturer: Ideal Clamp Products
- Brand: Ideal Clamp
- ARGPN: 47016
- MPN: 47016
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Ideal Clamp Products factory-direct delivery:
-
Flex-Gear clamps use a Belleville spring design to eliminate "cold flow" leakage that adjusts with the hose and fitting to maintain constant tension on the connection, eliminating leak paths. An excellent choice for fluctuating temperature and thermal compensation.
Ideal Clamp Constant Tension Clamp, 47 Series, #16 Nominal, Minimum Clamp Diameter: 13/16 in, Maximum Clamp Diameter: 1-1/2 in, 301 Stainless Steel, 5/16 in Bolt, 50 in-lb Torque, Additional Information: 9/16 in W Band, 410 Stainless Steel Screw, 301 Stainless Steel Band/Spring
| Additional Information | : | 9/16 in W Band, 410 Stainless Steel Screw, 301 Stainless Steel Band/Spring |
| Bolt Size | : | 5/16 in |
| Material | : | 301 Stainless Steel |
| Maximum Clamp Diameter | : | 1-1/2 in |
| Minimum Clamp Diameter | : | 13/16 in |
| Nominal Size | : | #16 |
| Series | : | 47 Series |
| Torque Rating | : | 50 in-lb |
- Belleville spring and clamp consruction is built to respond to constant temperature fluctuations.
- The larger, heavier-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal.
- Inner liner protects against shearing of the hose surfaces.
- 50 lbf-in (5.6 Nm) for most applications / Minimum destructive torque is 85 lbf-in (9.6 Nm)
