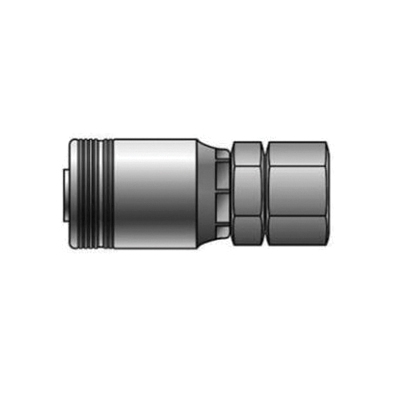

Gates® GlobalSpiral™ Max 32GSM-32FJX TuffCoat® Steel Female 37 deg JIC Flare Swivel Crimp Straight Hose Fitting, 2 in

Gates® 32GSM-32FJX

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 32GSM-32FJX
  • MPN: 32GSM-32FJX
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® GlobalSpiral™ Max Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: 37 deg JIC Flare Swivel, Gender 2: Female, Connection Size 2: 2 in, Nominal Size: 2 in, Thread Size 2: 2-1/2-12, Hex Size: 2.76 x 2.95 in, 6000 psi, Cut-Off Factor: 3.59 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 8.07 in L, 250 deg F

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      37 deg JIC Flare Swivel
Cut-Off Factor      :      3.59 in
Dimensions      :      8.07 in L
Finish      :      TuffCoat®
Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Hex Size      :      2.76 x 2.95 in
Hose Dash Size      :      32
Material      :      Steel
Material Construction      :      Steel
Nominal Size      :      2 in
Pressure Rating      :      6000 psi
Shape      :      Straight
Sub Brand      :      GlobalSpiral™ Max
Temperature Rating      :      250 deg F
Thread Size 2      :      2-1/2-12

2 in no-skive coupling design for high-pressure spiral wire hose. No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system.

  • Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
  • Coated with TuffCoat® plating, more than five times better corrosion-resistant than SAE ASTM B117 specification
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
