Gates® 4504-0003

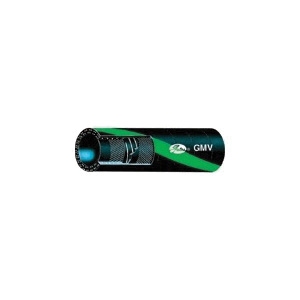

Gates® Global MegaVac® GMV Black Synthetic Rubber (Type C Nitrile) Return Line and Suction Hose, 1 in, 300 psi

  1. pin-int

Gates® Global MegaVac® Return Line and Suction Hose, Series: GMV, Nominal Size: 1 in, Dash Size: 16, 1.45 in OD, 1 in ID, 300 psi, Material Construction: Synthetic Rubber (Type C Nitrile), Type A Neoprene Cover, Construction: Double Spiral Textile Reinforced with a Helical Spiral-Wire, Black, 3 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 275 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3 in
Color      :      Black
Construction      :      Double Spiral Textile Reinforced with a Helical Spiral-Wire
Cover Material      :      Type A Neoprene
Dash Size      :      16
Inside Diameter      :      1 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber (Type C Nitrile)
Nominal Size      :      1 in
Outside Diameter      :      1.45 in
Pressure Rating      :      300 psi
Product Type      :      Return Line and Suction Hose
Resistance Properties      :      Abrasion, Oil
Series      :      GMV
Sub Brand      :      Global MegaVac®
Temperature High      :      275 deg F
Temperature Low      :      -40 deg F
  • Black, synthetic rubber tube is specifically designed for resistance to high-temperatures
  • Uses half the bend radius of SAE 100R4

Applications: For petroleum and water-base hydraulic fluids in suction lines or in low-pressure return lines

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_45040003_CAT.pdf
