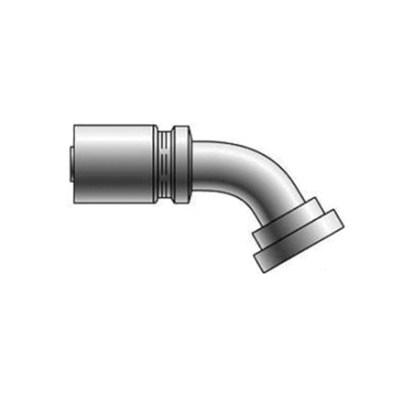

Gates® GL Series Code 61 O-Ring Flange Crimp Hose 60 deg Short Drop Elbow, 2 in

Gates® 32GL-32FL60S

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 32GL-32FL60S
  • MPN: 32GL-32FL60S
  • UPC: 072053465273
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Crimp Hose 60 deg Short Drop Elbow, Series: GL, Connection Type 1: Hose, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: Code 61 Flange, Connection Size 2: 2 in, Nominal Size: 2 in, Cut-Off Factor: 5.52 in, For Use With: Multi Master® SD MegaFlex®, MegaTech® Pressure Hoses, GMV™ Suction Hoses

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type      :      Hose~Code 61 Flange
Connection Type 1      :      Hose
Connection Type 2      :      Code 61 Flange
Cut-Off Factor      :      5.52 in
Fitting Type      :      60 deg Elbow
For Use With      :      Multi Master® SD MegaFlex®, MegaTech® Pressure Hoses, GMV™ Suction Hoses
Hose Dash Size      :      32
Nominal Size      :      2 in
Series      :      GL
Shape      :      60 deg Elbow

Gates® low pressure couplings with pre-crimped soft shell has been specifically designed to work with lower pressure hydraulic suction lines and low pressure return line hose. Its short body length provides the necessary grip for low pressure hose requirements and the bubble pattern crimp design ensures the similar optimal sealing to that of helical wire hoses on return vacuum applications.
