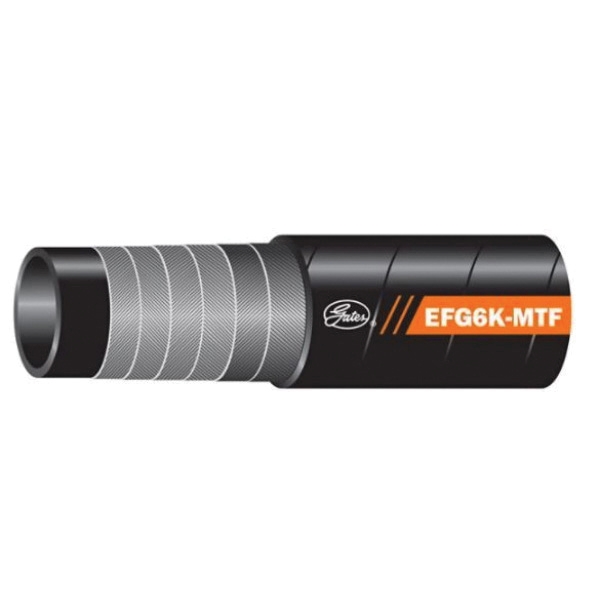

Gates® EFG6K-MTF Black Synthetic Rubber (Type C Nitrile) Hydraulic Spiral Hose, 1 in, 6000 psi

Gates® 4651-1604

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 16EFG6K-MTF
  • MPN: 4651-1604
  • UPC: 770075150855
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Hydraulic Spiral Hose, Series: EFG6K-MTF, Nominal Size: 1 in, Dash Size: 16, 1.53 in OD, 1 in ID, 6000 psi, SAE Rating: SAE 100R15, Material Construction: Synthetic Rubber, MegaTuff® Cover, Construction: 4-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 6 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 250 deg F High

Bend Radius      :      6 in
Color      :      Black
Construction      :      4-Alternating Layers of Spiraled, High-Tensile Steel Wire
Cover Material      :      MegaTuff®
Dash Size      :      16
Inside Diameter      :      1 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1 in
Outside Diameter      :      1.53 in
Pressure Rating      :      6000 psi
Product Type      :      Hydraulic Spiral Hose
Resistance Properties      :      Abrasion, Oil, Weather
SAE Rating      :      SAE 100R15
Series      :      EFG6K-MTF
Temperature High      :      250 deg F
Temperature Low      :      -40 deg F
  • EFG6K hose is compatible with bio-degradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 1000000 impulse cycles at 50% of SAE 100R15 bend radii
  • MegaTuff® cover which offers 300 times the abrasion resistance of the standard EFG6K cover as per ISO 6945, superior ozone and weathering-resistant
  • MegaTuff® cover offers 300 times the abrasion resistance of standard rubber cover
  • -6 to -20 validated with GlobalSpiral™, -24, -32 with GlobalSpiral™ maximum
  • Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
  • EFG6K-MTF MegaSpiral™ is rated at 1/2 bend radius of SAE 100R15
  • 6000 psi constant pressure for all ID's
  • Black, oil, abrasion and weather-resistant MegaTuff® with color coded layline cover

Applications: Extremely high-pressure and high impulse applications such as hydrostatic transmissions

Prop Warning ABS Approved|DNV-GL Certified|EN856 4SH|ISO 3862 Type R15 Specified|ISO 18752 Grade D Specified|MSHA 2G Specified|SAE 100R15 Certified

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_46511606_CAT.pdf
