Gates® 4651-4001 16EFG5K-MTF

Gates® 4651-4001

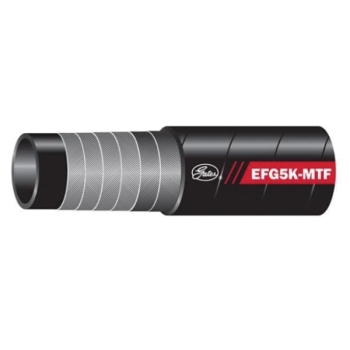

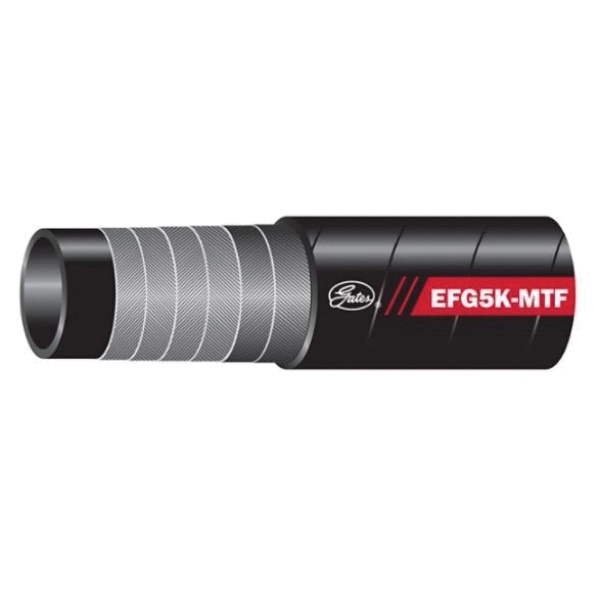

Gates® EFG5K-MTF Black Synthetic Rubber Hydraulic Spiral Hose, 1 in, 5000 psi

Add To Favorites
  1. pin-int

Gates® Hydraulic Spiral Hose, Series: EFG5K-MTF, Nominal Size: 1 in, Dash Size: 16, 1.53 in OD, 1 in ID, 5000 psi, SAE Rating: SAE 100R13, Material Construction: Synthetic Rubber, MegaTuff® UHMWPE Cover, Construction: 4-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 6 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 250 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      6 in
Color      :      Black
Construction      :      4-Alternating Layers of Spiraled, High-Tensile Steel Wire
Cover Material      :      MegaTuff® UHMWPE
Dash Size      :      16
Inside Diameter      :      1 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1 in
Outside Diameter      :      1.53 in
Pressure Rating      :      5000 psi
Product Type      :      Hydraulic Spiral Hose
Resistance Properties      :      Abrasion, Oil, Weather
SAE Rating      :      SAE 100R13
Series      :      EFG5K-MTF
Temperature High      :      250 deg F
Temperature Low      :      -40 deg F
  • EFG5K hose is compatible with bio-degradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 1000000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii
  • With the Gates special MegaTuff® cover which offers 300 times the abrasion-resistant of the standard EFG5K cover as per ISO 6945, superior ozone and weather-resistant
  • -6 to -20 validated with GlobalSpiral™, -24, -32 with GlobalSpiral™ maximum
  • Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
  • EFG5K-MTF MegaSpiral™ is rated at 1/2 bend radius of SAE 100R13
  • Meets flame-resistant acceptance designation MSHA 2G
  • 5000 psi constant pressure for all ID's
  • Extremely flexible
  • Black, oil, abrasion and weather-resistant MegaTuff® with color-coded lay line cover

Applications: For extremely high pressure and high impulse hydraulic applications

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_46511606_CAT.pdf
