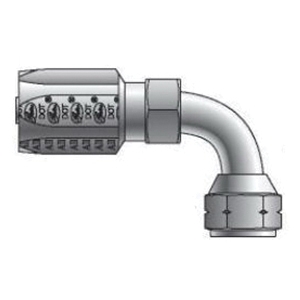

Gates® 12C5-12RFSX90 12C5-12RFSX90

Gates® 12C5-12RFSX90

Gates® 12C5-12RFSX90 Steel Female SAE 45 deg Flare Swivel DOT Type A1 Field Attachable Reusable 90 deg Elbow, 5/8 in x 3/4 in

pin-int

Gates® DOT Type A1 Field Attachable Reusable 90 deg Elbow, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: SAE 45 deg Flare Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-14, Hex Size: 1-1/4 x 1-1/4 in, Cut-Off Factor: 2-3/4 in, Material Construction: Steel, For Use With: Gates C5E Hose

Connection Size 1      :      5/8 in
Connection Size 2      :      3/4 in
Connection Type      :      Hose~SAE Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 45 deg Flare Swivel
Cut-Off Factor      :      2-3/4 in
Fitting Type      :      90 deg Elbow
For Use With      :      Gates C5E Hose
Gender 2      :      Female
Hex Size      :      1-1/4 x 1-1/4 in
Hose Dash Size      :      10
Material      :      Steel
Material Construction      :      Steel
Nominal Size      :      3/4 in
Shape      :      90 deg Elbow
Thread Size 2      :      1-1/16-14

Our D.O.T. Type A1 field attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.

  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
