Fill-Rite® FR1211G FR1211G

Fill-Rite® FR1211G

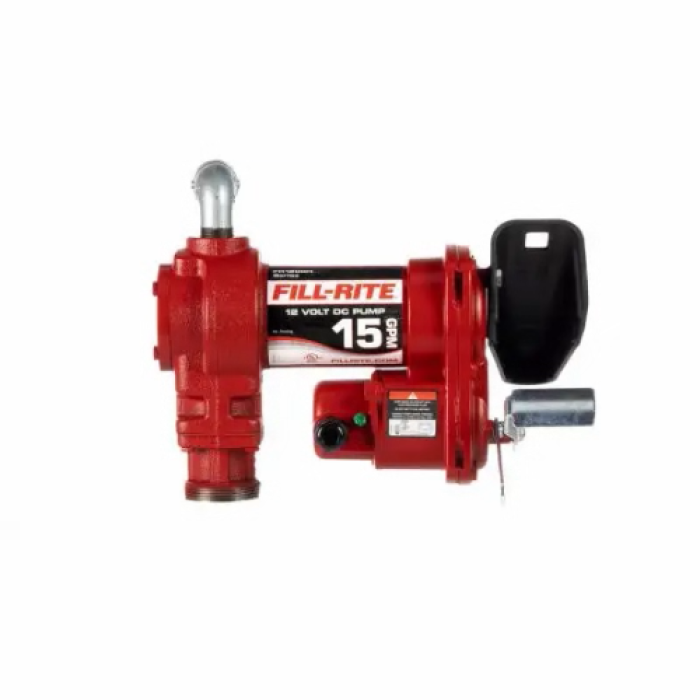

Fill-Rite® FR1200 Cast Iron Fuel Transfer Pump, 1 in, 1 in, 15 gpm

Add To Favorites
  1. pin-int

Fill-Rite® Fuel Transfer Pump, Series: FR1200, Connection Size 1: 1 in, Connection Size 2: 1 in, 15 gpm, 18-1/4 in Length, 18-5/8 in Width, 18 in Height, Material Construction: Cast Iron, Viscosity: 50 SUS, 12 VDC, 4.9 A, 2600 rpm, 0 - 16 psi, Includes: Pump, 3/4 in Manual Nozzle, 3/4 x 12 in Hose with Static Ground Wire, 18 ft Battery Cable, and 20 - 34 in Steel Telescoping Suction Pipe and 3-Wheel Mechanical Meter

Amperage Rating      :      4.9 A
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Flow Rate      :      15 gpm
Height      :      18 in
Includes      :      Pump, 3/4 in Manual Nozzle, 3/4 x 12 in Hose with Static Ground Wire, 18 ft Battery Cable, and 20 - 34 in Steel Telescoping Suction Pipe and 3-Wheel Mechanical Meter
Length      :      18-1/4 in
Material      :      Malleable Iron
Material Construction      :      Cast Iron
Pressure Rating      :      0 - 16 psi
Product Type      :      Transfer Pump
Series      :      FR1200
Speed      :      2600 rpm
Viscosity      :      50 SUS
Voltage Rating      :      12 VDC
Width      :      18-5/8 in

12 VDC, 15 gpm heavy-duty, cast-iron, rotary vane fuel transfer pump. Designed for gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits. Includes pump, 3/4 in manual nozzle, 3/4 in x 12 in hose with static ground wire, 18 ft battery cable, 20 to 34 in steel telescoping suction pipe and 3-wheel mechanical meter. Limited lifetime warranty. Made in USA.

  • 1/4 hp motor
  • 2 in threaded base for tank mounting
  • Iron rotor with bronze rotary vanes
  • Built-in strainer

Applications: Designed for gasoline, diesel, bio-diesel up to B20, E-15, kerosene, and mineral spirits
