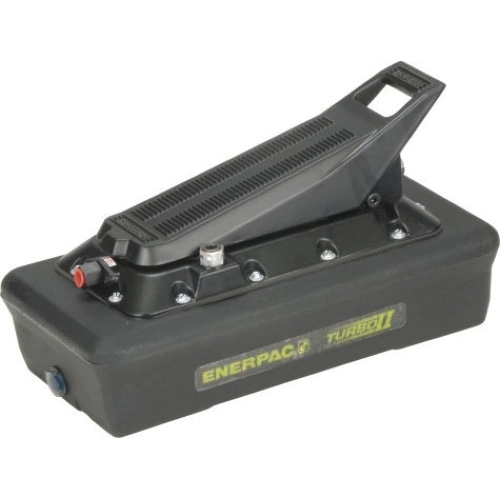

Enerpac® Turbo II Air Hydraulic Pump, Series: PATG, Reservoir Capacity: 230 cu-in, 10000 psi, 17.2 in Length, 7.92 in Width, 8.22 in Height
| Height |
: |
8.22 in |
| Length |
: |
17.2 in |
| Pressure Rating |
: |
10000 psi |
| Product Type |
: |
Hydraulic Pump |
| Reservoir Capacity |
: |
230 cu-in |
| Series |
: |
PATG |
| Width |
: |
7.92 in |
- High-efficiency cast aluminum air motor for increased life and reduced air consumption
- Reinforced heavy-duty reservoir for applications in tough environments
- New generation air saver piston with rugged 1-piece design reduces air consumption and operating costs
- Return-to-tank port for use in remote valve applications
- Reduced noise level to 76 dBA
- 2.8 - 8.8 bar operating air pressure enables pump to start at extremely low pressure
- External adjustable pressure relief valve (behind sight glass)
- Internal pressure relief valve provides overload protection
Applications: For use with single-acting cylinders
