DRILLCO CUTTING TOOLS 1000C140

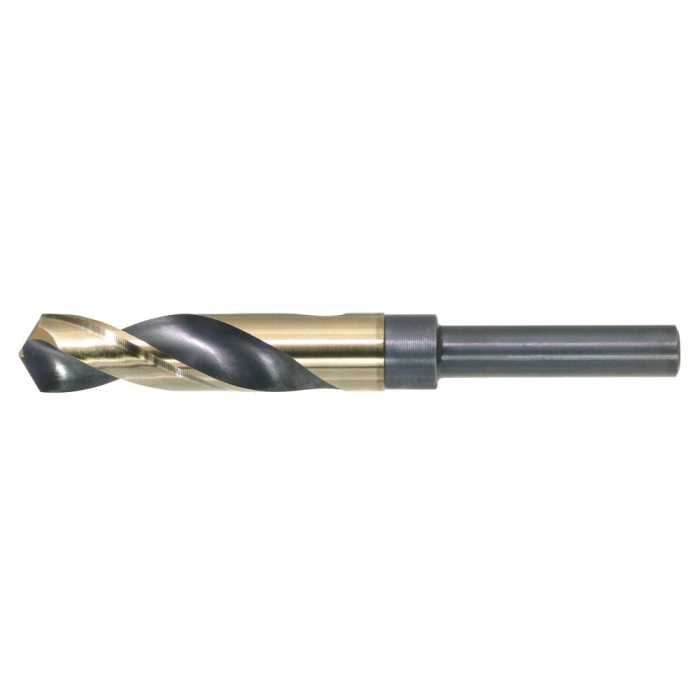

DRILLCO CUTTING TOOLS 1000C140 Silver and Deming Drill Bit, 5/8 in Drill Fraction, 3 in L Flute, 6 in OAL, 118 deg Point
- Manufacturer: Walter Surface Technologies Inc
- Brand: DRILLCO CUTTING TOOLS
- ARGPN: TRI-092040
- MPN: 1000C140
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Walter Surface Technologies Inc factory-direct delivery:
-
Are of general purpose flute design but all sizes have a 1/2 by 2-1/4 long shank. The maximum overall length is 6 and the flute length is 3 in. This makes them short drills in the larger sizes and thus well-suited to use in portable electric drills equipped with 1/2 in chucks. They are highly effective in tough high tensile strength materials. The 135 deg split point reduces thrust and eliminates walking at the drill point.
DRILLCO CUTTING TOOLS Silver and Deming Drill Bit, 1000C Series, Drill Size - Fraction: 5/8 in, Drill Size - Decimal Inch: 0.625 in, 6 in Overall Length, 3 in Flute Length, 1/2 in Shank Diameter, Reduced Shank, 118 deg Point Angle, Split Point, Cobalt, Finish: Black/Gold
| Drill Size - Decimal Inch | : | 0.625 in |
| Drill Size - Fraction | : | 5/8 in |
| Finish | : | Black/Gold |
| Flute Length | : | 3 in |
| Material | : | Cobalt Cobalt |
| Overall Length | : | 6 in |
| Point Angle | : | 118 deg |
| Point Type | : | Split |
| Series | : | 1000C Series |
| Shank Diameter | : | 1/2 in |
| Shank Type | : | Reduced |
