Dixon® WS8F8-BOP

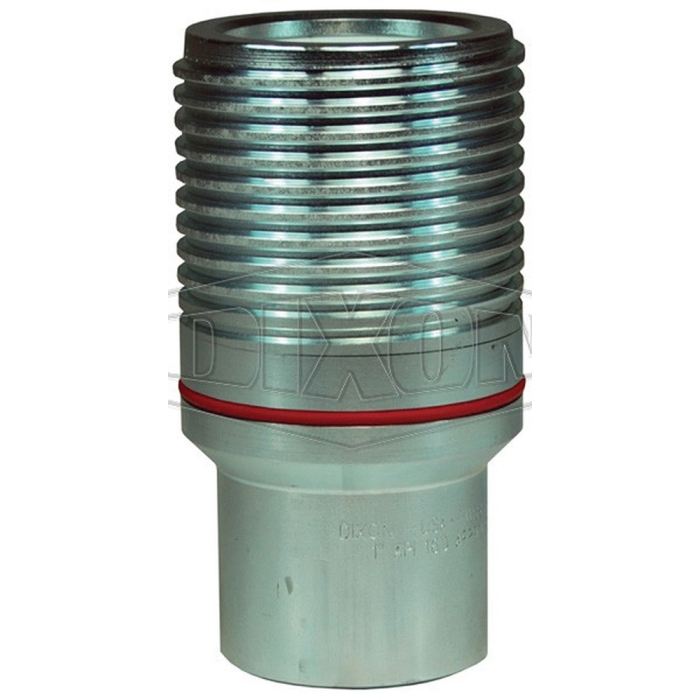

Dixon® WS-BOP Steel Blowout Preventer High-Pressure Wingstyle Plug, 1 in Quick Disconnect x 1 in FNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: WS8F8-BOP
  • MPN: WS8F8-BOP
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
  1. pin-int

Dixon® Blowout Preventer High-Pressure Wingstyle Plug, Series: WS-BOP, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, 5000 psi, Material Construction: Steel, Dimensions: 2.25 in OD x 4.18 in L

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      2.25 in OD x 4.18 in L
Gender 2      :      Female
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      5000 psi
Series      :      WS-BOP
Shape      :      Plug
Thread Size 2      :      1-11-1/2
  • Machined components are manufactured using solid steel bar stock
  • Stainless steel retaining ring and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant zinc nickel for superior corrosion resistance
  • Red powder-coated external nipple O-ring for easy BOP service identification
  • Blow-out Preventer (BOP) couplings contain severe service FKM seals
  • PTFE anti-extrusion ring protects main coupling O-ring from dynamic impulse pressure damage
  • Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection
  • Snap-Tite 75 Series
  • DNP VFF-HD BOP series
  • BOP couplings have been fire tested and Lloyd's certified to 700 deg C (1300 deg F) in accordance with API 16D

Applications: Designed for use in oil rig BOP systems where couplings are required to operate under fire conditions in an emergency

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_WS8F8-BOP_CAT.pdf
