Dixon® TR300
  1. pin-int

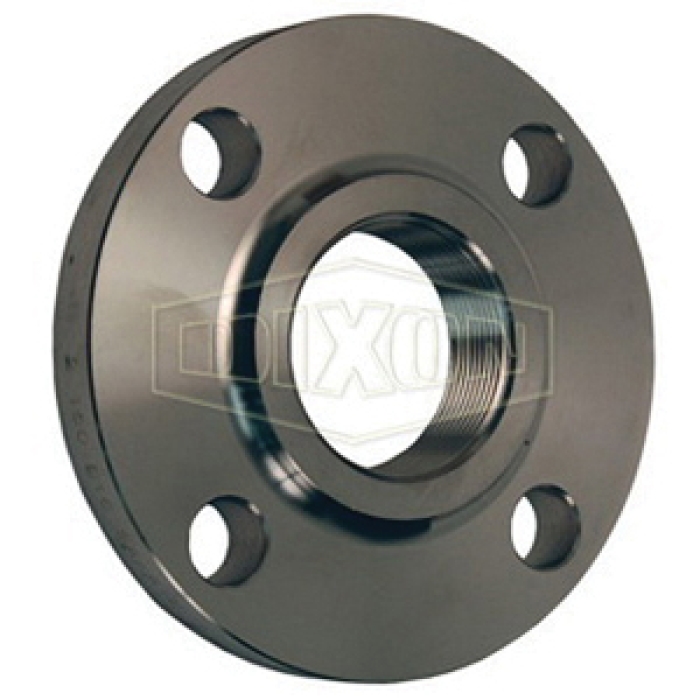

Dixon® TR300 316 Stainless Steel ASA Forged Flange, 3 in FNPT

Dixon® TR300

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: TR300
  • MPN: TR300
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® ASA Forged Flange, Connection Type 1: NPT, Gender 1: Female, Connection Size 1: 3 in, 150 lb, 4 -Bolt Hole, Material Construction: 316 Stainless Steel, Dimensions: 7-1/2 in Dia x 1-3/16 in L

Connection Size 1      :      3 in
Connection Type 1      :      NPT
Dimensions      :      7-1/2 in Dia x 1-3/16 in L
Gender 1      :      Female
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Number of Bolt Holes      :      4
Pressure Rating      :      150 lb
Shape      :      Flange
  • Raised face

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_T200_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_T200_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_TR300_TD.pdf
