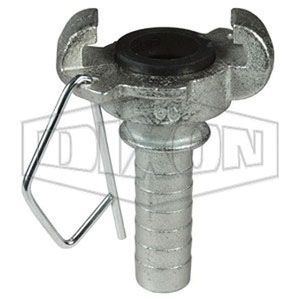

Dixon® Surelock™ SL100H Iron Small Head Hose End, 1 in Hose

Dixon® SL100H

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: SL100H
  • MPN: SL100H
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Surelock™ Small Head Hose End, Connection Type 1: Hose, Connection Size 1: 1 in, 200 psi, Material Construction: Iron, 70 deg F

Connection Size 1      :      1 in
Connection Type 1      :      Hose
Material      :      Malleable Iron
Material Construction      :      Iron
Pressure Rating      :      200 psi
Shape      :      Hose End
Sub Brand      :      Surelock™
Temperature Rating      :      70 deg F
  • The pressure activated gasket allows easy coupling (less than 15 lb of force is required to connect the coupling) and gaskets seal upon introduction of line pressure
  • AS1831 400-250-12 SG iron body
  • Natural rubber (patent pending) bellow seal
  • Safety pin is supplied with each coupling
  • Natural rubber seal

Applications: For air service only, commonly used in construction and mining, excels in services where ease, economy, safety and speed are paramount

Safety Notes: Safety pin is supplied with each coupling and is required as a safety precaution.

  • Pressure rating is based on use with band clamps.
  • Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_SL050F_SS.pdf
