Dixon® 2SHDM2

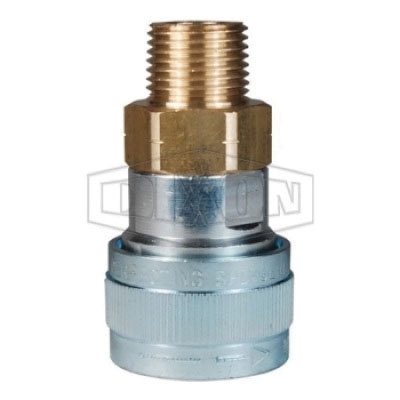

Dixon® SHD Aluminum Schrader Pneumatic Interchange Coupler, 1/4 in Quick Disconnect x 1/4 in MNPT

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 2SHDM2
  • MPN: 2SHDM2
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Schrader Pneumatic Interchange Coupler, Series: SHD, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/4 in, Hex Size: 11/16 in, 300 psi, Material Construction: Aluminum, Dimensions: 1.12 in OD x 2.22 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPT
Dimensions      :      1.12 in OD x 2.22 in L
Gender 2      :      Male
Hex Size      :      11/16 in
Material      :      Aluminum
Material Construction      :      Aluminum
Pressure Rating      :      300 psi
Series      :      SHD
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
  • Machined components are manufactured using solid bar stock
  • Stainless steel toggle-pawls and springs, carbon steel retaining rings
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Adapter components are constructed of brass
  • Sleeves are constructed of steel
  • Nitrile (Buna-N) seals are standard
  • Schrader Twist-Lock interchange
  • Parker Twist-Lock, Tomco Series-TL, Foster SHD

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2SHDM2_CAT.pdf
    • Cut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2SHDM2_SS.pdf
