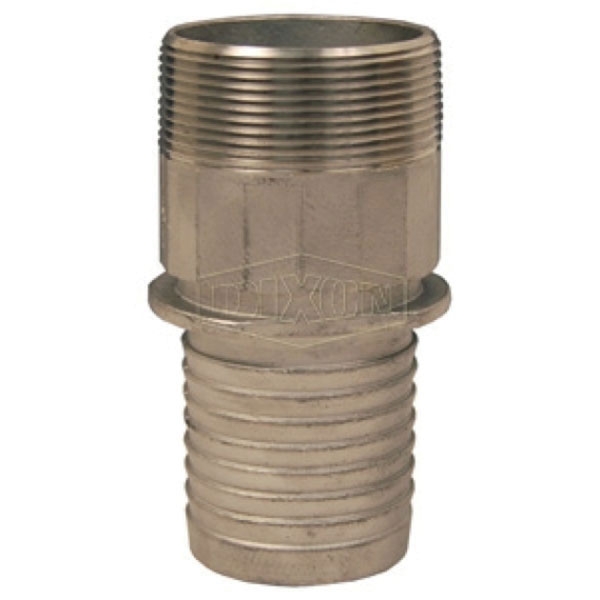

Dixon® RST200NOS 316 Stainless Steel External Swage Notched NOS Stem, 2 in Hose x 2 in MNPT

Dixon® RST200NOS

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • MPN: RST200NOS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® External Swage Notched NOS Stem, Connection Type 1: Hose, Connection Size 1: 2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 2 in, 250 psi, Material Construction: 316 Stainless Steel, 2-3/8 in Diameter, 4-9/16 in Length

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type 1      :      Hose
Connection Type 2      :      NPT
Diameter      :      2-3/8 in
Gender 2      :      Male
Length      :      4-9/16 in
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      250 psi
Shape      :      Stem

Safety Notes: Only use the NOS shank with the NOS ferrules.

  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon® Holedall products.
  • You must purchase a fitting and the matching ferrule to create an assembly.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Consult Dixon® for recommendations on usage.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD.
  • Dixon's die and ferrule recommendation guide is to be used to select correct dies and ferrules.
  • Consult Dixon® if you do not have an updated die and ferrule recommendation guide.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material.
  • Compatibility of ferrule material with the environment in which it will be used is recommended.
  • Consult the compatibility chart or contact Dixon® for material compatibility.
  • For applications other than the ones list, please consult Dixon.
  • Consult maximum working pressure chart or consult Dixon.

    Applications: Recommended for use where lower working pressures are encountered, on most one and two wire braid reinforced hoses, fiber reinforced (braided or spiraled) with or without helical wire such as: oil and suction discharge hose, barge and dock loading and unloading hose as well as LP gas hose, anhydrous ammonia hose, acid chemical hose and air and water hose
