Dixon® H36 H36

Dixon® H36

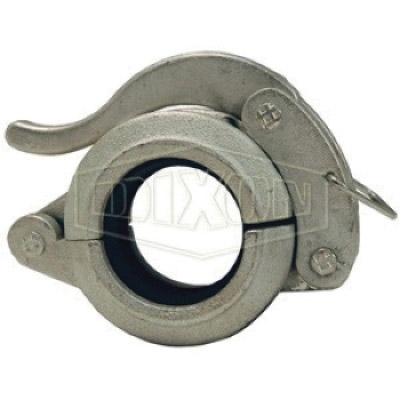

Dixon® Q Series Zinc-Plated Ductile Iron Quick Release Coupling with EPDM Seal, 6 in Grooved

pin-int

Dixon® Quick Release Coupling with EPDM Seal, Series: Q, Connection Type 1: Grooved, Connection Size 1: 6 in, Connection Type 2: Grooved, Connection Size 2: 6 in, 300 psi, Material Construction: Ductile Iron, Finish: Zinc-Plated, Dimensions: 6-5/8 in OD

California residents see Prop 65 WARNINGS

Connection Size 1      :      6 in
Connection Size 2      :      6 in
Connection Type 1      :      Grooved
Connection Type 2      :      Grooved
Dimensions      :      6-5/8 in OD
Finish      :      Zinc-Plated
Material      :      Malleable Iron
Material Construction      :      Ductile Iron
Pressure Rating      :      300 psi
Series      :      Q
Shape      :      Coupling
  • A locking pin through the handle prevents accidental opening of the coupling
  • Comparable to Victaulic's #78 and Grinnell's #7003
  • Steel safety clip
  • EPDM seal

Applications: For applications requiring a quick connection and/or disconnection of a pipe joint

  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_14MPHRL100_CAT.pdf
  • Cut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H325_SS.pdf
