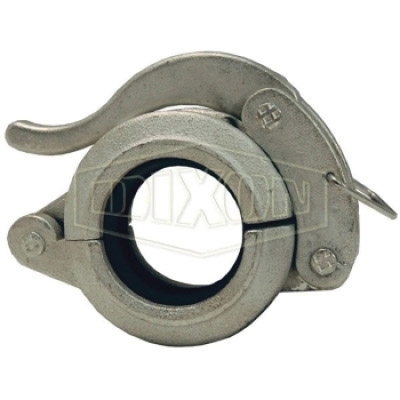

Dixon® Q Series Zinc-Plated Ductile Iron Quick Release Coupling with Buna Seal, 2 in Grooved

Dixon® H32BU

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: H32BU
  • MPN: H32BU
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Quick Release Coupling with Buna Seal, Series: Q, Connection Type 1: Grooved, Connection Size 1: 2 in, Connection Type 2: Grooved, Connection Size 2: 2 in, 300 psi, Material Construction: Ductile Iron, Finish: Zinc-Plated, Dimensions: 2-3/8 in OD

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type 1      :      Grooved
Connection Type 2      :      Grooved
Dimensions      :      2-3/8 in OD
Finish      :      Zinc-Plated
Material      :      Malleable Iron
Material Construction      :      Ductile Iron
Pressure Rating      :      300 psi
Series      :      Q
Shape      :      Coupling
  • A locking pin through the handle prevents accidental opening of the coupling
  • Comparable to Victaulic's #78 and Grinnell's #7003
  • Steel safety clip
  • Buna-N seal material

Applications: For applications requiring a quick connection and/or disconnection of a pipe joint

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H32BU_SS.pdf
