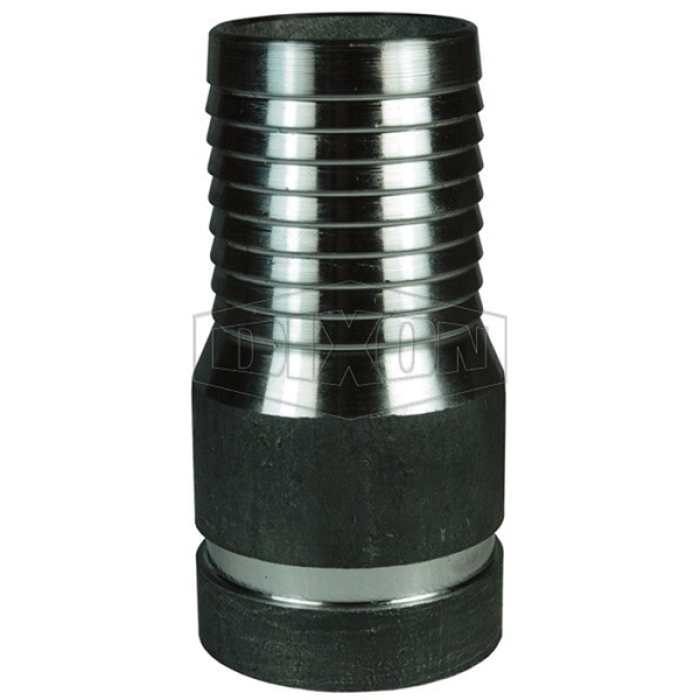

Dixon® King™ STV25 Unplated Steel Combination Nipple, 2 in Hose Barb x 2 in Grooved

Dixon® STV25

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: STV25
  • MPN: STV25
  • UPC: 697464008460
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® King™ Combination Nipple, Connection Type 1: Hose Barb, Connection Size 1: 2 in, Connection Type 2: Grooved, Connection Size 2: 2 in, Material Construction: Steel, Finish: Unplated, 2-3/8 x 2-1/32 in Diameter, 4-11/16 in Length, 70 deg F

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      Grooved
Diameter      :      2-3/8 x 2-1/32 in
Finish      :      Unplated
Length      :      4-11/16 in
Material      :      Steel
Material Construction      :      Steel
Shape      :      Nipple
Sub Brand      :      King™
Temperature Rating      :      70 deg F

Applications: For low-pressure discharge and suction service for compatible liquids, crimp sleeves

Safety Notes:

  • King combination nipples are not recommended for steam.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.
  • For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
  • Not for compressible products such as air or nitrogen.

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RSTV20_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STV25_TD.pdf
