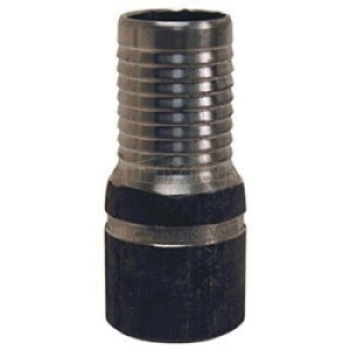

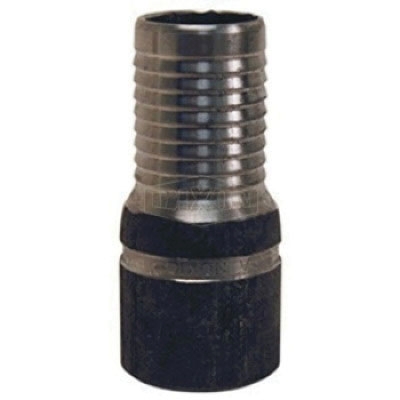

Dixon® King™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 2 in, Connection Type 2: Beveled End, Connection Size 2: 2 in, Material Construction: Steel, Finish: Unplated, 2-3/8 in Diameter, 4-11/16 in Length
| Connection Size 1 |
: |
2 in |
| Connection Size 2 |
: |
2 in |
| Connection Type 1 |
: |
Hose |
| Connection Type 2 |
: |
Beveled End |
| Diameter |
: |
2-3/8 in |
| Finish |
: |
Unplated |
| Length |
: |
4-11/16 in |
| Material |
: |
Steel |
| Material Construction |
: |
Steel |
| Shape |
: |
Nipple |
| Sub Brand |
: |
King™ |
Applications: Recommended for low pressure discharge and suction service for compatible liquids
Safety Notes: King combination nipples are not recommended for steam.
The working pressure may vary with the construction of the hose, the type of clamping system used and the application.Consult Dixon® for recommendations.In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for 15 min without leaking or coupling movement.For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
-
Cut Sheet
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RSTV20_SS.pdf
-
Technical Drawing/Parts Diagram
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STB25_TD.pdf
