Dixon® STB35CS

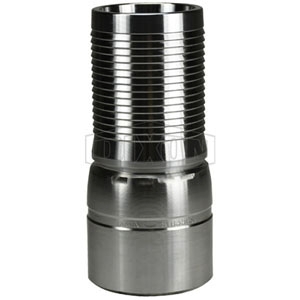

Dixon® King Crimp™ STB35CS Carbon Steel Combination Nipple, 3 in Hose x 3 in Beveled End

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • MPN: STB35CS
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
  1. pin-int

Dixon® King Crimp™ Combination Nipple, Connection Type 1: Hose, Connection Size 1: 3 in, Connection Type 2: Beveled End, Connection Size 2: 3 in, Material Construction: Carbon Steel, 3-1/2 in Diameter, 7-17/32 in Length, For Use With: King Crimp™ Style Sleeves, Ferrules

California residents see Prop 65 WARNINGS

Connection Size 1      :      3 in
Connection Size 2      :      3 in
Connection Type 1      :      Hose
Connection Type 2      :      Beveled End
Diameter      :      3-1/2 in
For Use With      :      King Crimp™ Style Sleeves, Ferrules
Length      :      7-17/32 in
Material      :      Steel
Material Construction      :      Carbon Steel
Shape      :      Nipple
Sub Brand      :      King Crimp™
  • There are two grooves on the crimp style King Combination nipples
  • The second groove is the roll stamp groove which has the part number and 'call Dixon®' stamped on it
  • This groove is a smooth concentric groove so that the stamp can be legible

Safety Notes: Only use the crimp style shanks with the crimp style sleeves and ferrules.

  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon® products.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RSTV25CS_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STB35CS_TD.pdf
