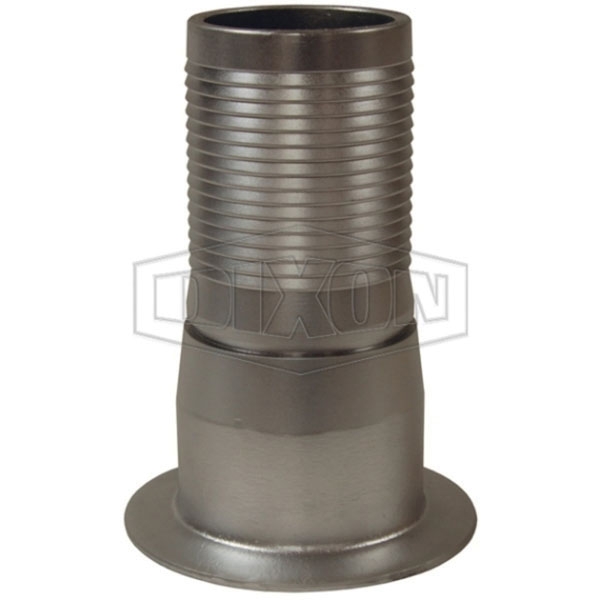

Dixon® King Crimp™ RN25CS 316 Stainless Steel Nipple, 2 in Hose x 2 in Flange

Dixon® RN25CS

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: RN25CS
  • MPN: RN25CS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® King Crimp™ Nipple, Connection Type 1: Hose, Connection Size 1: 2 in, Connection Type 2: Flange, Connection Size 2: 2 in, Material Construction: 316 Stainless Steel, 3-5/8 in Diameter, 6-13/32 in Length, For Use With: LJ/LJR Floating Flanges, King Crimp Sleeves and/or Ferrules

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type 1      :      Hose
Connection Type 2      :      Flange
Diameter      :      3-5/8 in
For Use With      :      LJ/LJR Floating Flanges, King Crimp Sleeves and/or Ferrules
Length      :      6-13/32 in
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Shape      :      Nipple
Sub Brand      :      King Crimp™

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RN25CS_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RN25CS_TD.pdf
