Dixon® AST10
  1. pin-int

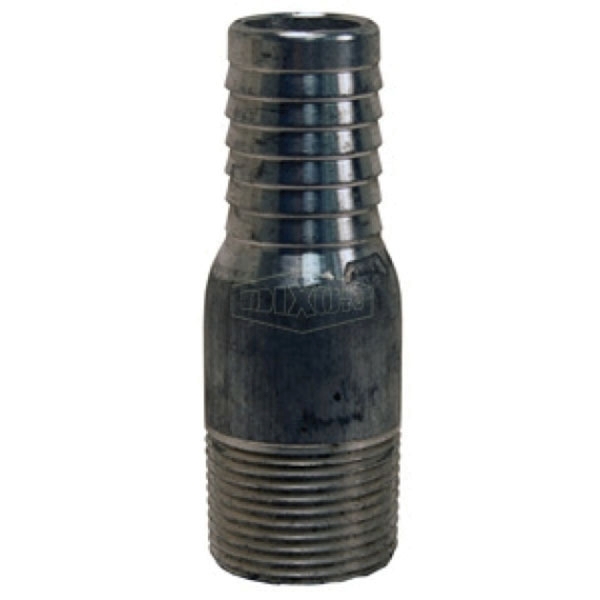

Dixon® King™ AST10 Aluminum Combination Nipple with Knurled Wrench Grip, 1 in Hose Barb x 1 in MNPT

Dixon® AST10

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: AST10
  • MPN: AST10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® King™ Combination Nipple with Knurled Wrench Grip, Connection Type 1: Hose Barb, Connection Size 1: 1 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1 in, Material Construction: Aluminum, 1-5/16 in Diameter, 3-1/2 in Length

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      NPT
Diameter      :      1-5/16 in
Gender 2      :      Male
Length      :      3-1/2 in
Material      :      Aluminum
Material Construction      :      Aluminum
Shape      :      Nipple
Sub Brand      :      King™
  • NPT threaded end with knurled wrench grip

Safety Notes: King combination nipples are not recommended for steam.

  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application. Consult Dixon® for recommendations.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement.
  • For additional information and detailed instructions on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
  • Not for compressible products such as air or nitrogen.

    Applications: For low-pressure discharge and suction service for compatible liquids

    • Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5076BU_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AST1_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_AST10_TD.pdf
