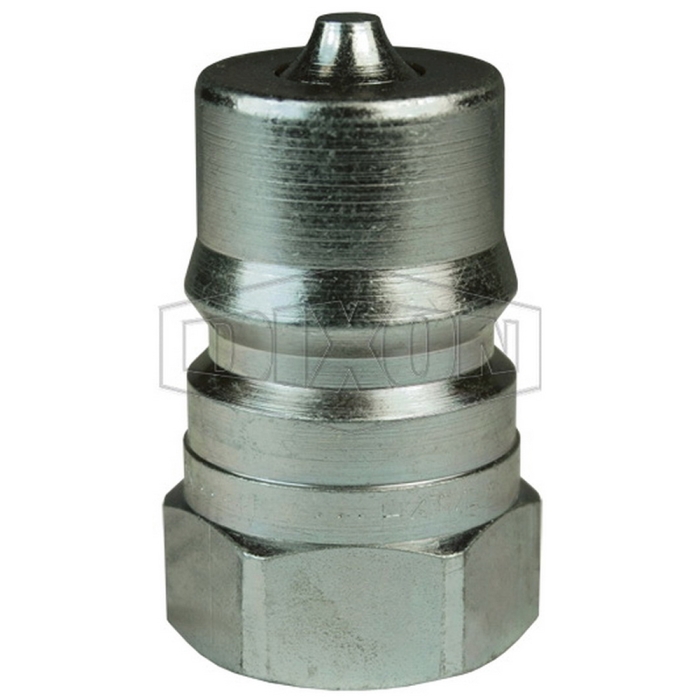

Dixon® H Series Trivalent Chrome-Plated Steel ISO-B Interchange Plug, 1 in Quick Disconnect x 1 in Female ORB

Dixon® H8OF8

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: H8OF8
  • MPN: H8OF8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® ISO-B Interchange Plug, Series: H, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-5/8 in, 4000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 2.87 in OD x 2.87 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      ORB
Dimension Standards      :      ISO 7241 Series B
Dimensions      :      2.87 in OD x 2.87 in L
Finish      :      Trivalent Chrome-Plated
Gender 2      :      Female
Hex Size      :      1-5/8 in
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      4000 psi
Series      :      H
Shape      :      Plug
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      1-5/16-12
  • Poppet style shut-off valves
  • Designed to prevent fluid loss when disconnected
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel nipples are hardened to provide heavy-duty performance and resist brinelling
  • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX
