Dixon® G50-C-SS G50-C-SS

Dixon® G50-C-SS

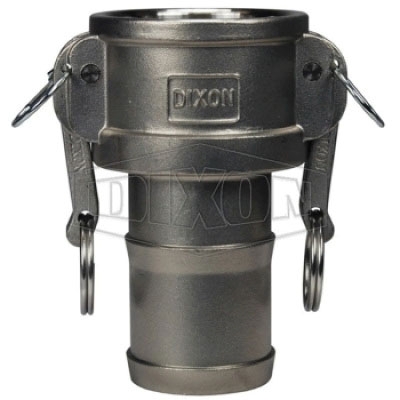

Dixon® G50-C-SS 316 Stainless Steel Global Cam and Groove Coupler, 1/2 in Female Type C x 1/2 in Hose Shank

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: G50-C-SS
  • MPN: G50-C-SS
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Global Cam and Groove Coupler, Connection Type 1: Type C, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: Hose Stem, Connection Size 2: 1/2 in, 150 psi, Material Construction: 316 Stainless Steel, Dimensions: 3-15/32 in L x 2-1/16 in W

California residents see Prop 65 WARNINGS

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Type C
Connection Type 2      :      Hose Stem
Dimensions      :      3-15/32 in L x 2-1/16 in W
Gender 1      :      Female
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      150 psi
Shape      :      Coupler
  • Buna seal
  • Designed to interchange with all products produced to A-A-59326D

Safety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service!

  • Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed.
  • For use at elevated temperature or other unusual operating conditions, consult Dixon®.

    Applications: For use with liquids

    • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_400TCAAL_CAT.pdf
    • Cut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_G50CSS_SS.pdf
    • Technical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_G50CSS_TD.pdf
