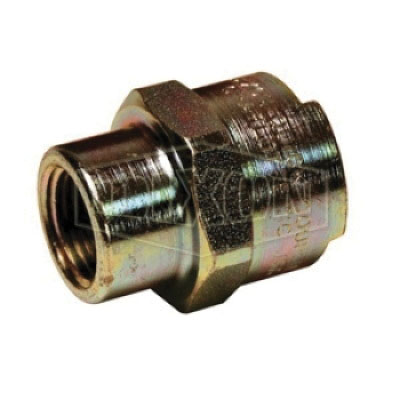

Dixon® 4NF4
Dixon® Dix-Lock™ N Series 4NF4 Bowes Interchange Coupler, 1/2 in Quick Disconnect x 1/2 in FNPTF, Steel
- Manufacturer: Dixon Valve & Coupling
- Brand: Dixon®
- ARGPN: QM102
- MPN: 4NF4
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Available for Dixon Valve & Coupling factory-direct delivery:
-
Dixon® Bowes Interchange Coupler, Series: N, Fitting Type: Coupling, Connection Size 1: 1/2 in, Connection Type 1: Quick Disconnect, Connection Size 2: 1/2 in, Connection Type 2: FNPTF, Connection Type: Quick-Disconnect|FNPT, Steel, Material Construction: Steel, Chrome Trivalent-Plated, 1-3/8 in Hex, 1/2-14 Thread, 1.63 in L x 1.54 in Dia, Maximum Operating Pressure: 500 psi, -40 to 250 deg F Operating
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type | : | Quick-Disconnect|FNPT |
| Connection Type 1 | : | Quick Disconnect |
| Connection Type 2 | : | FNPTF |
| Dimensions | : | 1.63 in L x 1.54 in Dia |
| Finish | : | Chrome Trivalent-Plated |
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Hex Size | : | 1-3/8 in |
| Material | : | Steel |
| Material Construction | : | Steel |
| Maximum Operating Pressure | : | 500 psi |
| Operating Temperature | : | -40 to 250 deg F |
| Pressure Rating | : | 500 psi |
| Series | : | N Series |
| Shape | : | Coupler |
| Sub Brand | : | Dix-Lock™ |
| Temperature Rating | : | -40 to 250 deg F |
| Thread Size | : | 1/2-14 |
| Thread Size 2 | : | 1/2-14 |
- Machined components are manufactured using solid bar stock
- Nitrile (Buna-N) seals are standard
- Steel componentry is plated using RoHS compliant trivalent chrome
- Conforms to MIL-C-3486 and A-A-50431A standards
- Bowes interchange bayonet style
- Interchangeable with Bowes 51000 Series, National Series 'B', MacDonald quick action, Campbell single-lock
