Dixon® DDC400SS

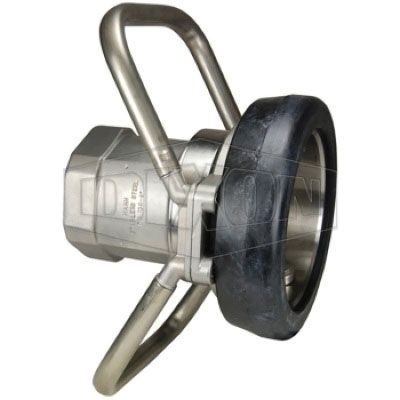

Dixon® DDC400SS 316 Stainless Steel Mann Tek Dry Disconnect Hose Unit Coupler, 164 mm Female Coupler x 4 in FNPT

  1. pin-int

Dixon® Mann Tek Dry Disconnect Hose Unit Coupler, Connection Type 1: Coupler, Gender 1: Female, Connection Size 1: 164 mm, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 4 in, Hex Size: 164 mm, 360 psi, Material Construction: 316 Stainless Steel, Dimensions: 232 mm L, For Use With: Composite (Polyeten PE-HD 300) Plug

California residents see Prop 65 WARNINGS

Connection Size 1      :      164 mm
Connection Size 2      :      4 in
Connection Type 1      :      Coupler
Connection Type 2      :      NPT
Dimensions      :      232 mm L
For Use With      :      Composite (Polyeten PE-HD 300) Plug
Gender 1      :      Female
Gender 2      :      Female
Hex Size      :      164 mm
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      360 psi
Shape      :      Coupler
  • Coupler has built-in swivel
  • Shaft journal in stainless steel embedded in PTFE to eliminate seizure
  • The protective ring is a specially formulated, weather-resistant and electrically conductive rubber compound
  • Easy to handle-push and turn-free flow, turn and pull-closed
  • Time saving - no need to drain hoses or pipe systems
  • Economical, no loss or spillage of liquids at connection or disconnection
  • Safety - the valve cannot be opened until the unit is coupled
  • Safe and reliable, due to rugged construction
  • Product life - uncomplicated design and high-quality materials ensures long product life
  • Stainless steel ball bearings
  • All wetted parts are stainless steel
  • Rollers are Hastelloy C276 on the stainless steel shaft
  • FKM (FPM) seal
  • Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756

Safety Notes: Working pressure is based on psi at ambient temperature 70 deg F, for pressure ratings at other temperatures contact Dixon®.

Applications: Dry disconnect couplings are designed for the quick and spill-free connection and disconnection of hoses and pipelines. They are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide variety of common caustic and specialty acids

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DDC150SS_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DDC150SS_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DDC400SS_TD.pdf
