Dixon® BBV100ST
  1. pin-int

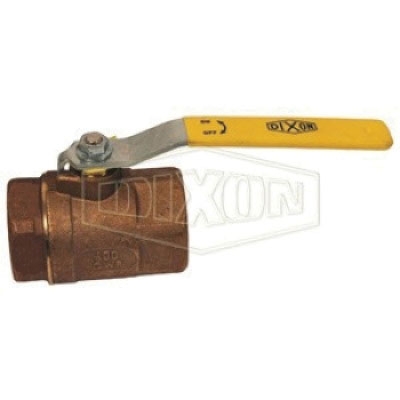

Dixon® BBV100ST Bronze 250 lb Steam Standard-Port Ball Valve, 1 in FPT, 600 psi

Dixon® BBV100ST

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: BBV100ST
  • MPN: BBV100ST
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® 250 lb Steam Standard-Port Ball Valve, Nominal Size: 1 in, Connection Type: FPT, Material Construction: Bronze, RPTFE Trim, 450 deg F, 600 psi

Connection Type      :      FPT
Material      :      Bronze
Material Construction      :      Bronze
Nominal Size      :      1 in
Pressure Rating      :      600 psi
Product Type      :      Ball Valve
Temperature Rating      :      450 deg F
Trim Material      :      RPTFE
  • Vacuum service to 29 in-Hg
  • Blowout-proof stem
  • Adjustable packing gland
  • Bronze body
  • 316 stainless steel ball and stem
  • Multi-fill RPTFE seats
  • Multi-fill stuffing box ring
  • High temperature MTFE stem packing

Applications: For use with fluids with widely varying temperatures and thermal expansion rates

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_BBLV38_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_BBV100ST_SS.pdf
