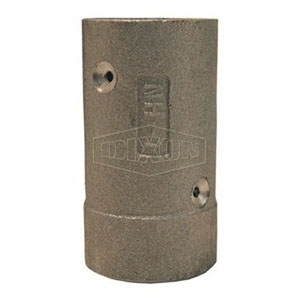

Dixon® ANH100 Aluminum Sand Blast Nozzle Holder, 1 in Hose x 1 in FNPSM

Dixon® ANH100

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: ANH100
  • MPN: ANH100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Sand Blast Nozzle Holder, Connection Type 1: Hose, Connection Size 1: 1 in, Connection Type 2: NPSM, Gender 2: Female, Connection Size 2: 1 in, 110 psi, Material Construction: Aluminum, Dimensions: 2-1/4 in Dia x 3-13/32 in L, For Use With: Sand Blast Hose

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      Hose
Connection Type 2      :      NPSM
Dimensions      :      2-1/4 in Dia x 3-13/32 in L
For Use With      :      Sand Blast Hose
Gender 2      :      Female
Material      :      Aluminum
Material Construction      :      Aluminum
Pressure Rating      :      110 psi
Shape      :      Nozzle Holder
  • Supplied with screws

Instructions: Ends of hose must be cut square to fit snug against metal end.

  • Holding hose tight to end of fitting, insert screws and turn in full, putting screw 180 deg from first to ensure best centering.
  • After all screws have been placed, check tube opposite screws to be sure screws have not penetrated completely through.

    Safety Notes: Abrasive blasting equipment must have hose safety cables or hose coupling safety clips installed.

  • Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_14MPHRL100_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_ANH100_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_ANH100_TD.pdf
