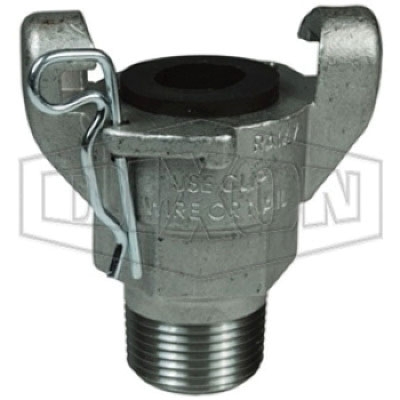

Dixon® Air King™ RAM12 316 Stainless Steel 2-Lug Hose End, 1 in MNPT

Dixon® RAM12

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: RAM12
  • MPN: RAM12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Air King™ 2-Lug Hose End, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1 in, Thread Size 1: 1-11-1/2, Hex Size: 1-1/2 in, 150 psi, Material Construction: 316 Stainless Steel, 70 deg F

Connection Size 1      :      1 in
Connection Type 1      :      NPT
Gender 1      :      Male
Hex Size      :      1-1/2 in
Material      :      Stainless Steel
Material Construction      :      316 Stainless Steel
Pressure Rating      :      150 psi
Shape      :      Hose End
Sub Brand      :      Air King™
Temperature Rating      :      70 deg F
Thread Size 1      :      1-11-1/2
  • Includes safety clip
  • Supplied with rubber washer AWR4
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
  • Only one Air King™ safety clip or wire-type retainer is required for each Air King™ universal coupling
  • Air King™ meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D

Applications: For air and water service only

Prop Warning Mil-A-A-59326D Specified | Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_GAM0_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RAM12_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_RAM12_TD.pdf
