Dixon® 70NAB32 1470-03-02

Dixon® 70NAB32

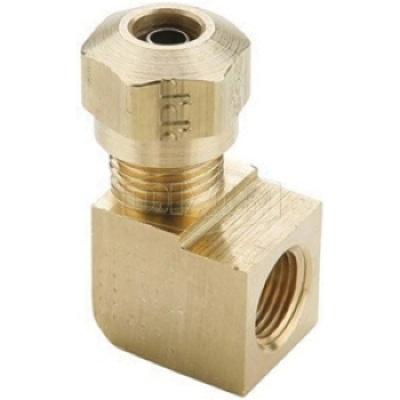

Dixon® 70NAB32 Brass Compression Air Brake Elbow, 3/16 in Tube x 1/8 in Female Threaded

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 1470-03-02
  • MPN: 70NAB32
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • Available for Dixon Valve & Coupling factory-direct delivery: loading
  • loading
  • Add to cart
    Add To Favorites
pin-int

Dixon® Compression Air Brake Elbow, Connection Type 1: Tube, Connection Size 1: 3/16 in, Thread Size 1: 5/16-24, Connection Type 2: Threaded, Gender 2: Female, Connection Size 2: 1/8 in, Hex Size: 1/8 in, 150 psi, Material Construction: Brass, -40 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/16 in
Connection Size 2      :      1/8 in
Connection Type 1      :      Tube
Connection Type 2      :      Threaded
Gender 2      :      Female
Hex Size      :      1/8 in
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      150 psi
Shape      :      Elbow
Temperature Rating      :      -40 to 200 deg F
Thread Size 1      :      5/16-24
  • Positive grip
  • Machined from CA260, CA345 or CA377 brass
  • Utilize ribbed sleeve for compression and positive grip

Instructions: Cut tubing squarely maximum of 15 deg angle allowable.

  • Check that port or mating part is clean and free of debris.
  • Insert tubing into fittings until it bottoms on seat.
  • Tighten nut with wrench until one thread remains visible on the fittings body, (this will allow for a number of remakes) or, the nut should be screwed down finger tight, then wrench tightened according to the tube size used.

    Applications: For use in air brake systems or cab controls

    • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_60NAB3_CAT.pdf
    • Cut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_70NAB32_SS.pdf
    • SDS https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_69NAB32VS_SDS.pdf
