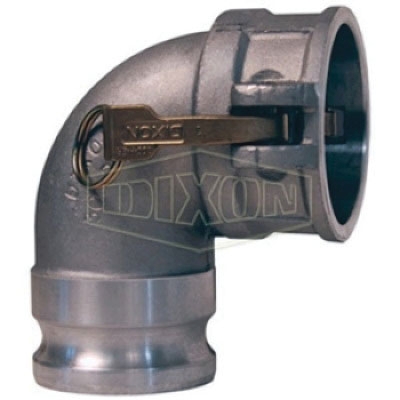

Dixon® Cam and Groove 90 deg Elbow, Connection Type 1: Type D, Gender 1: Male, Connection Size 1: 6 in, Connection Type 2: Type A, Gender 2: Female, Connection Size 2: 6 in, 75 psi, Material Construction: Aluminum
Connection Size 1 |
: |
6 in |
Connection Size 2 |
: |
6 in |
Connection Type 1 |
: |
Type D |
Connection Type 2 |
: |
Type A |
Gender 1 |
: |
Male |
Gender 2 |
: |
Female |
Material |
: |
Aluminum |
Material Construction |
: |
Aluminum |
Pressure Rating |
: |
75 psi |
Shape |
: |
90 deg Elbow |
- Buna-N seal material
- Produced to interchange with all product produced to commercial item description A-A-59326D
- 356T6 aluminum construction
Safety Notes: Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Pressure rating recommendations are based on the use of mating Dixon® fittings at ambient temperature 70 deg F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon®.Applications: For use with liquids
Mil-A-A-59326D Specified | Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_100APM_CAT.pdf
-
Cut Sheet
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_150DA90AL_SS.pdf
-
Technical Drawing/Parts Diagram
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_600DA90AL_TD.pdf
