Dixon® H5282L-A H5282L-A

Dixon® H5282L-A

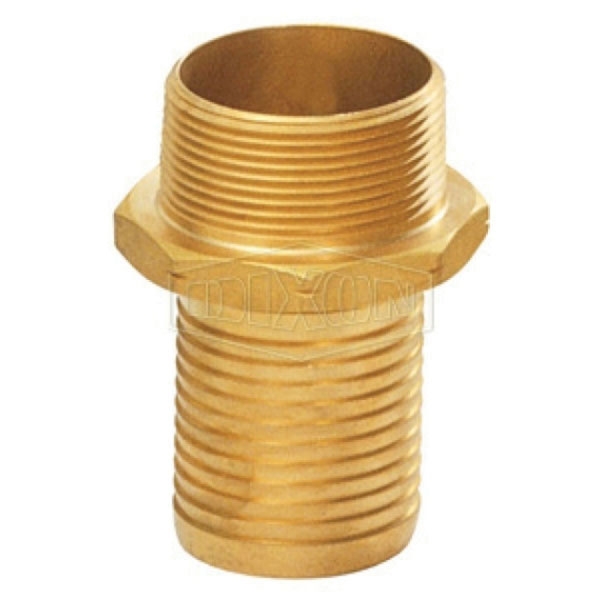

Dixon® 520-H Brass Permanently Attached Petroleum Coupling, 4 in Hose x 4 in MNPT

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: H5282L-A
  • MPN: H5282L-A
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Permanently Attached Petroleum Coupling, Series: 520-H, Connection Type 1: Hose, Connection Size 1: 4 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 4 in, Material Construction: Brass, 5-1/2 in Diameter, 6-1/32 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      4 in
Connection Size 2      :      4 in
Connection Type 1      :      Hose
Connection Type 2      :      NPT
Diameter      :      5-1/2 in
Gender 2      :      Male
Length      :      6-1/32 in
Material      :      Brass
Material Construction      :      Brass
Series      :      520-H
Shape      :      Coupling
  • Male has octagonal facets for tightening with a wrench
  • The stem is expanded to nominal ID of hose for a rigid, uniform, full-flow area
  • Couplings are pre-lubricated for assembly
  • Stems are machined from bar stock or solid brass forgings
  • Designed for internal expansion only

Safety Notes: Do not interchange with other manufacturer's fittings.

  • Designed for internal expansion only.
  • Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Consult Dixon® for recommendations on usage.
  • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material.
  • Compatibility of ferrule material with the environment in which it will be used is recommended.
  • Consult the Compatibility Chart or the Dixon® factory for material compatibility.
  • For applications other than the ones list, please consult Dixon®.

    Applications: For discharge and suction service and commonly used in the transfer of fuel to homes, airplanes, ships

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_10WSDPA_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5282LA_SS.pdf
    • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5282LA_TD.pdf
