Dixon® H5211-A-BU

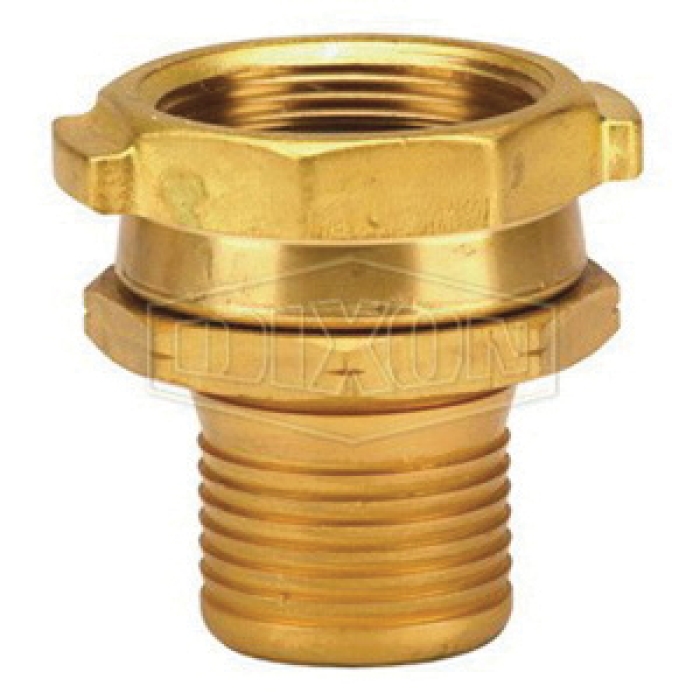

Dixon® 520-H Brass Permanently Attached Petroleum Coupling, 1 in FNPSH

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: H5211-A-BU
  • MPN: H5211-A-BU
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
  1. pin-int

Dixon® Permanently Attached Petroleum Coupling, Series: 520-H, Connection Type 1: NPSH, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: NPSH, Gender 2: Female, Connection Size 2: 1 in, Material Construction: Brass, For Use With: Internally Expanding Permanent Coupling-Scovill Style, 2-5/16 in Length

California residents see Prop 65 WARNINGS

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Type 1      :      NPSH
Connection Type 2      :      NPSH
For Use With      :      Internally Expanding Permanent Coupling-Scovill Style
Gender 1      :      Female
Gender 2      :      Female
Length      :      2-5/16 in
Material      :      Brass
Material Construction      :      Brass
Series      :      520-H
Shape      :      Coupling
  • Female has octagonal facets for tightening with a wrench
  • The stem is expanded to nominal ID of hose for a rigid, uniform, full-flow area
  • Couplings are compact, light and streamlined to eliminate catching on curbs and shrubs
  • Couplings are pre-lubricated for assembly
  • Stems are machined from bar stock or solid brass forgings

Applications: For discharge and suction service and commonly used in the transfer of fuel to homes, airplanes, ships, internal expansion only

Safety Notes:

  • Do not interchange with other manufacturer's fittings.
  • Designed for internal expansion only.
  • Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Consult Dixon® for recommendations on usage.
  • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material.
  • Compatibility of ferrule material with the environment in which it will be used is recommended.
  • Consult the Compatibility Chart or the Dixon® factory for material compatibility.
  • For applications other than the ones list, please consult Dixon®.
